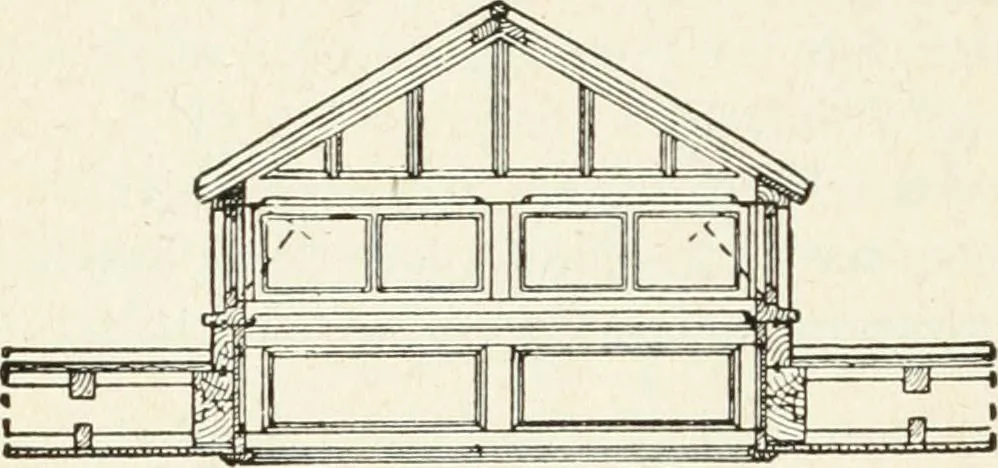

tom rail, they open in-wards ; when on the top rail they open outwards. AVhenthey are hung on pivots, the pivots are fixed slightlyabove the middle of the sash. Figs. 109 and 112 showdetails of a rectangular opening surmounted by a lan-tern light which is hipped at both ends, and has side-lights… … Section through CD. Fig. 109. the roof-lights are pyramidal as shown in Figs. 106 and110, and a separate frame is constructed as shown in
