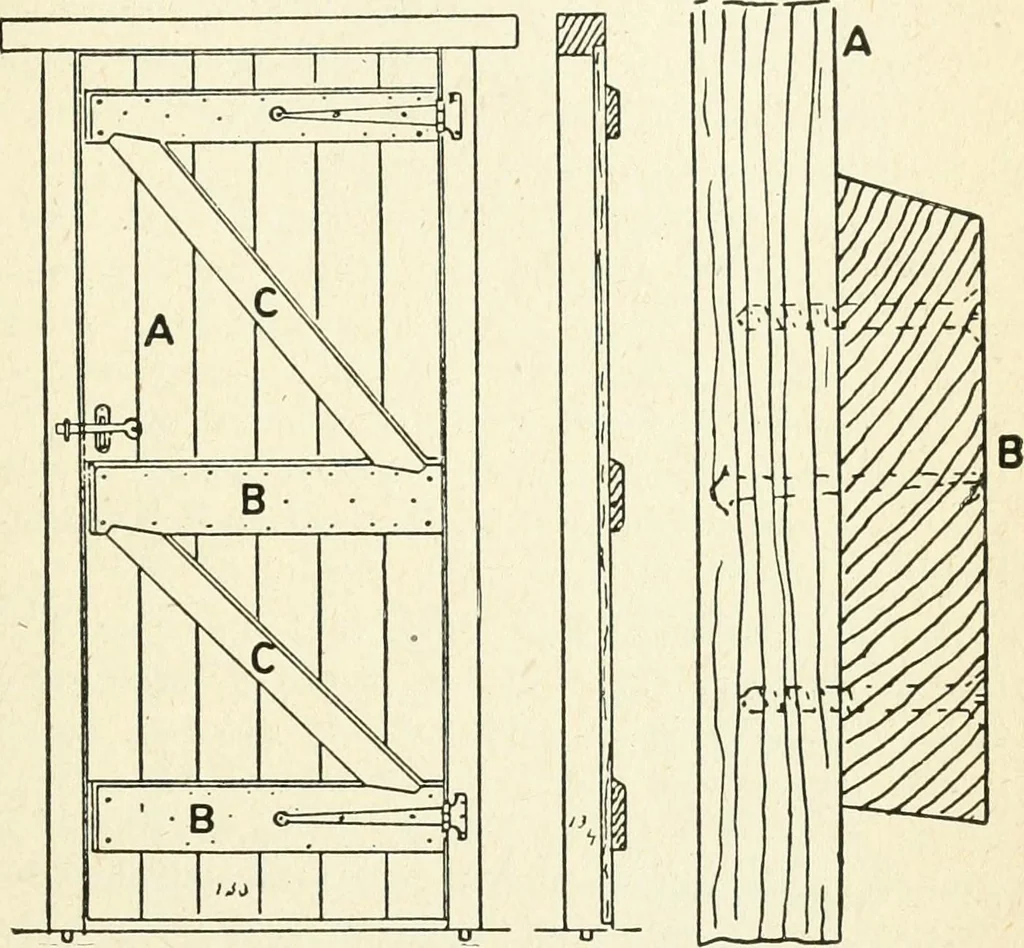

t of all the boards edge to edge,as that could not be represented in this space, butenough is shown to give a clear idea of how the linesare. obtained. The full breadth of each is representedby the dimension lines 0, P, R, S, T, U, V, and fromthis all the other is easy. PRACTICAL SOLUTIONS 251 The… … Fig. 133. Fig. 134. Fig. 135. Battened Framed and Braced, Panelled or Framed,Entrance, Vestibule, Screen, Sash, Diminished Stile,Double Margin, Gothic, Dwarf, Folding, Swing, Jib,Warehouse Hung, &c. The essentials in the design andconstruction of doors are, for the first, that they shallhave a…
