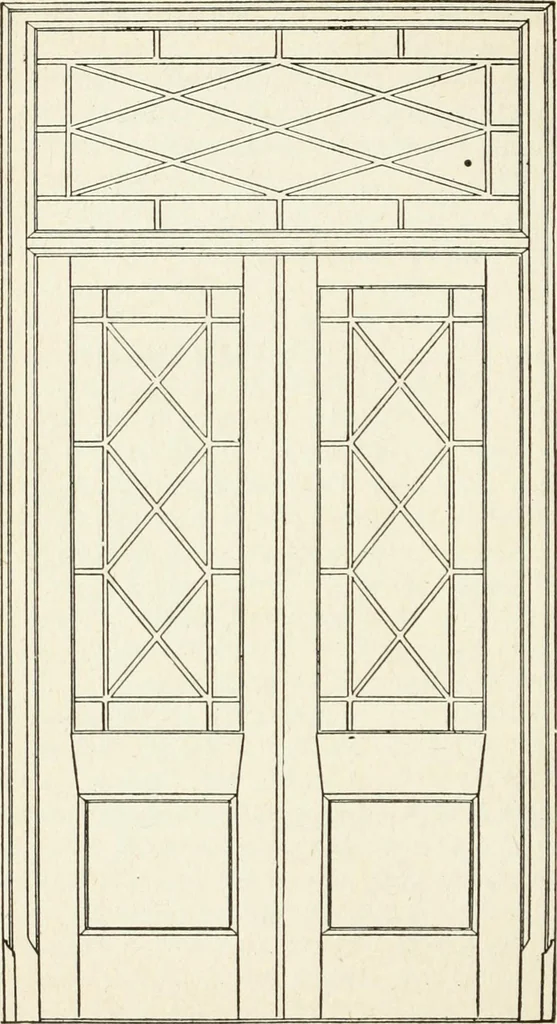

e set out is shown in Fig. 157. This is known as aShoulder Square. It consists of an ordinary set squareprovided with a movable fence or bar B, which is slot-ted to pass on both sides of the square, and is pivotednear the right angle. A set screw near the outer endof the bar passes through a… … /i Pair of Vestibule DooRi (Eighteenth Century Slyle^Fig. 157. PRACTICAL SOLUTIONS 273 square is also made a concentric curve to permit theeasy passage of the end of the bar. The theory uponwhich the action of the tool is based is that the anglebetween the parallel bar B and either of the edges…
