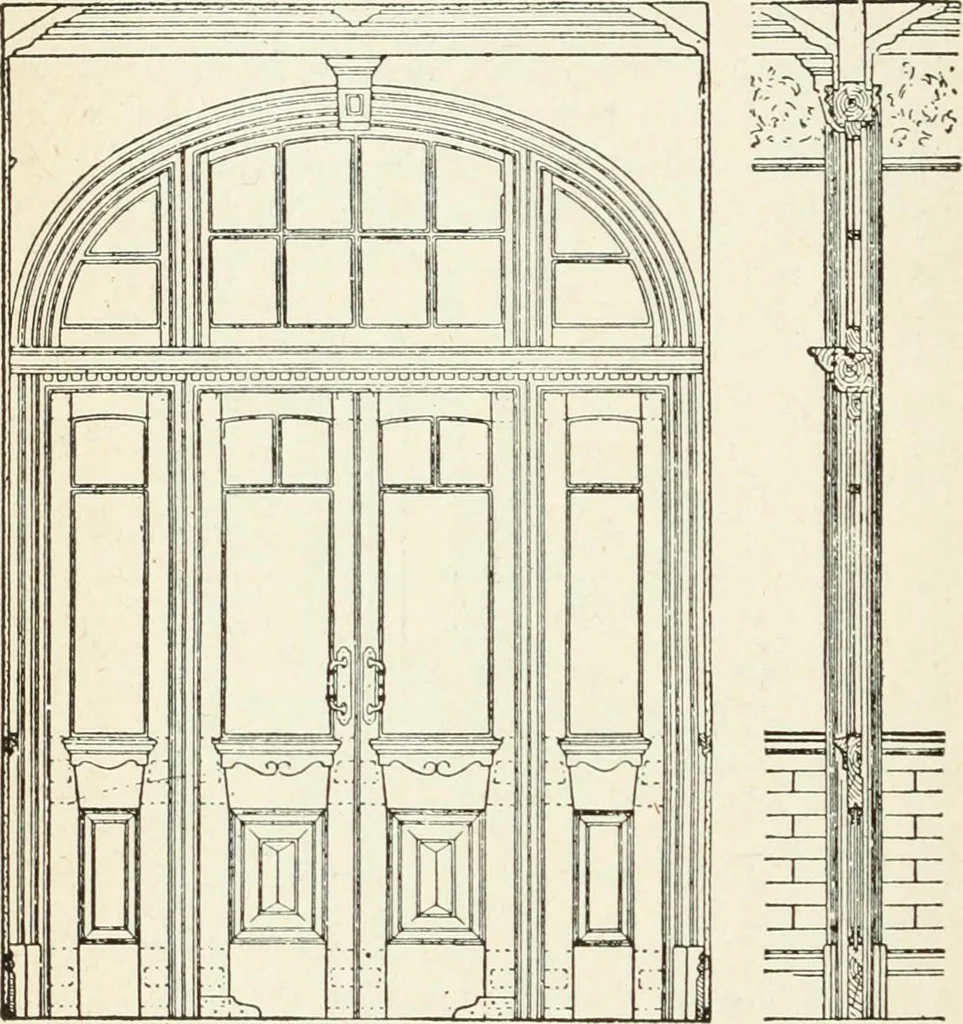

s of thescrews—are bored; and about three-quarters of aninch below these, larger holes—of size equal to theheads of the screws—are bored. Each small hole isconnected to the large one adjacent to it by a slot, thedepth of which is slightly greater than the projec-tion of the screws. The architrave… … ElevationFig. 170. Vertical SectionFig. 171. slots. By placing the screws so that they are slightlyinclined, the tendency is to draw the architraves closerto the wall. Fig. 169 shows the explanatory detail. The above remarks upon door frames, linings, etc.,apply especially to the doors of…
