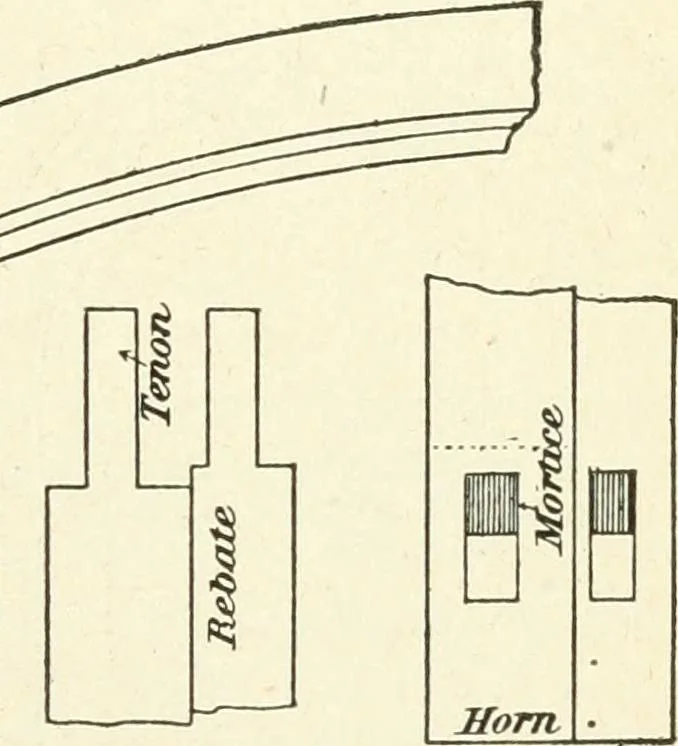

they are PRACTICAL SOLUTIONS 287 made in two lengths, jointed at the crown, and fas-tened with a handrail bolt. The horns are taken outlevel at the springing- line, and the back is maderoughly parallel to the shoulders for convenience infixing. When the frame is 4 in. and upwards in thick-ness,… … Fig. 178. Ffg. !79. Fig. 180. 180, although the horns would not be cut off until theframe was fixed, as they would be required for thepurpose of cramping up the frame. A Semi-headed Frame may have its head cut in twoor three lengths and bolted together, but is frequentlybuilt up as shown in Figs.…
