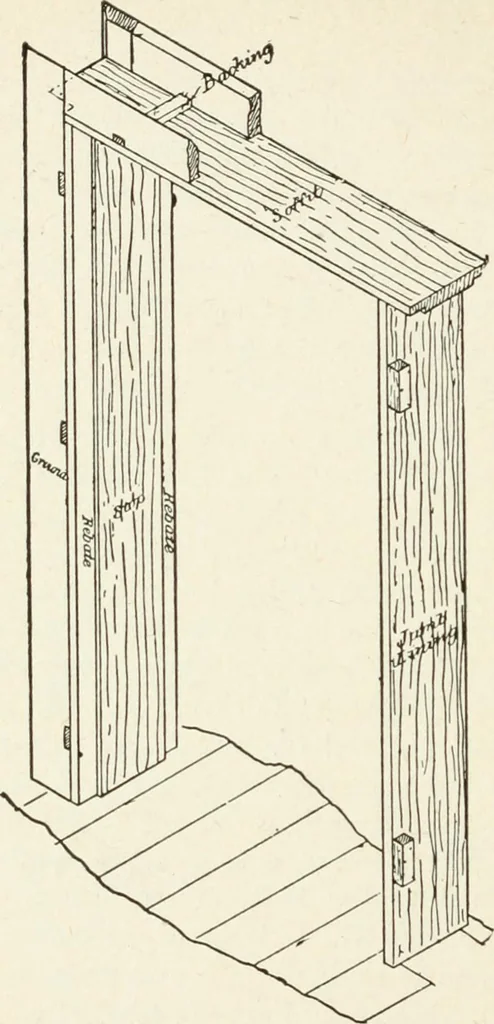

hinges. This, however, may be supplemented by hingeblocks glued to the back of the lining just behindwhere the hinges will be inserted, as shown on one sideof the isometric sketch of a set of Plain Jamb Linings(Fig. 184). When the lining is rebated on both edges,it is said to be double rebated.… … Isometric Sketch of a DoubleRebated Set of Plain Linings with DoubleSet of Grounds, Fig. 184. PRACTICAL SOLUTIONS 291 Grounds.—Figs. 188 and 189 are light frames form-ing a boundary to all openings in plastered walls, their
