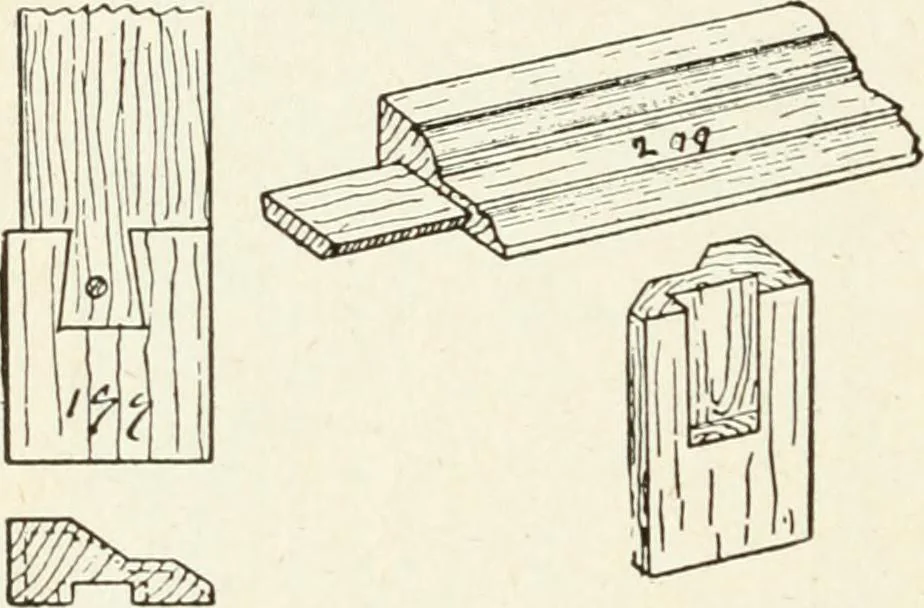

ued before replacing. Foot or Plinth Blocks are used at the bottom of allarchitraves in good work, and are secured in two ways 298 MODERN CARPENTRY (see Figs. 199 and 200). The latter is the better way,as there is less difficulty in fitting the shoulder, andalso less danger of splitting the plinth,… … Method of Fixing Plinth to Architrave. Fig. 199. Fig. 200. Door and Jambs Complete. Figs. 201 and 202 showa door, with jambs and linings complete. The detailsfor constructing and fastening in place are all shown.Each member of the door is named, also base andgrounds. Figs. 202 to 220 show a number…
