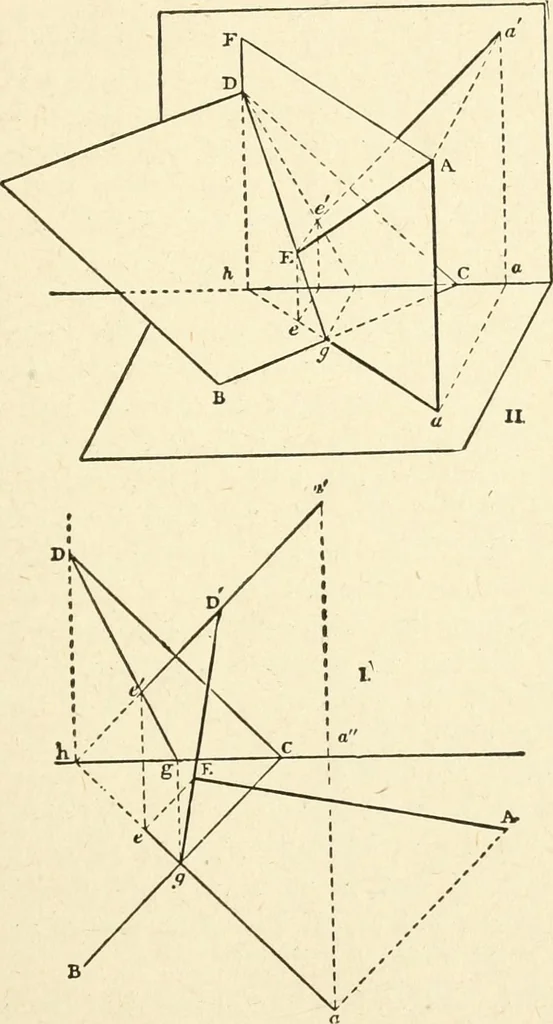

I. Huiizoiital Projection. II. Vertical Projection on Plane AD-III, Vertical Projection on Plane_cj>.Fig. 13. true altitude of the triangle f e D, as e E is equal toe e. Set off therefore from g towards A a distance gE equal to g E:, and join F E, E D; F E D is the anglemade by the two… … 4. Vertical and Horizontal Projections. II. Perspective View Fig. 14. 30 MODERN CARPENTRY X. Through a given point to draw a perpendicularto a given plane. Let a and a (Fig. 14, II.) be the projections of thegiven point, and B C, C D the horizontal and verticaltraces of the given plane. Suppose the…
