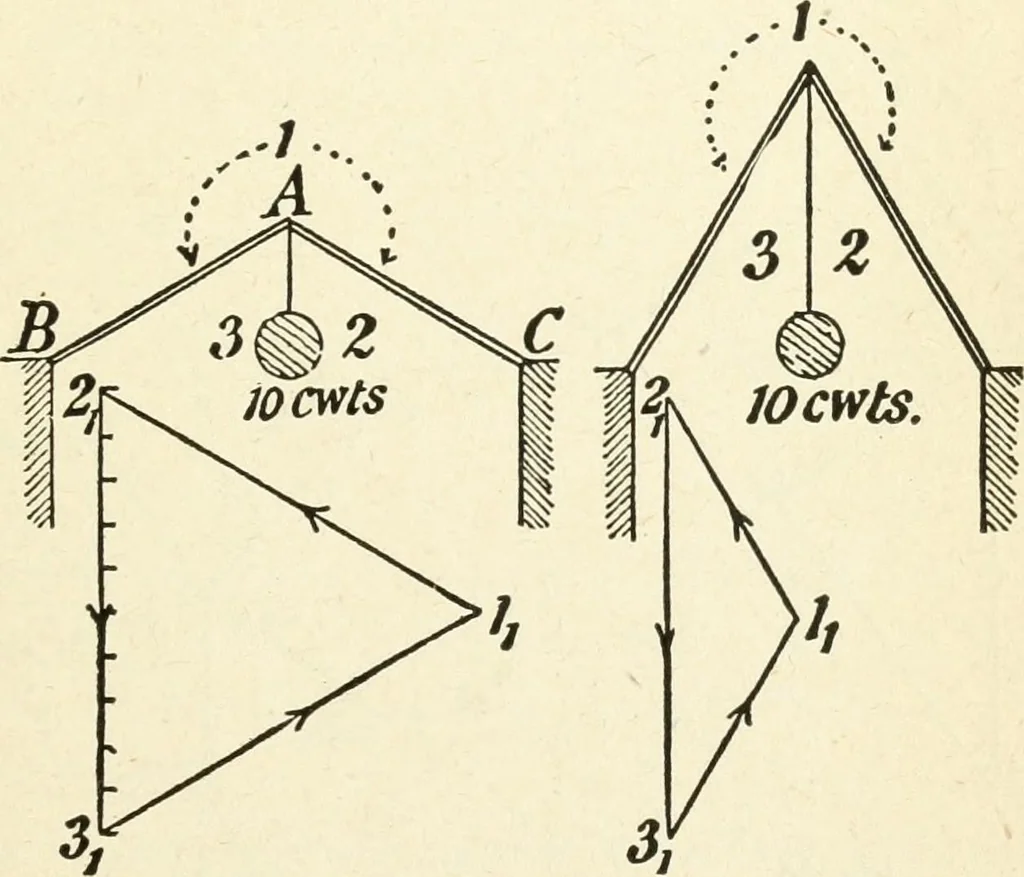

. These lines represent the amount of stressalong the members A C and A B. On taking the sidesof the triangle in order as shown by the arrows, it is MECHANICS OF CARPENTRY 319 seen that 2^3^ act downwards; 3^1^ acts towards thejoint A, as does also li2j; therefore each member issubject to a… … Fig. 18. Fig. 19. Polygon of Forces. The method of obtaining theresultant of any two forces acting at a point can beextended to three, four, or any number of forces. Example. 0 A, 0 B, 0 C, O D, 0 E, (Fig. 21) repre-sent the magnitude and direction of five forces acting 320 MODERN CAKPENTRY at the…
