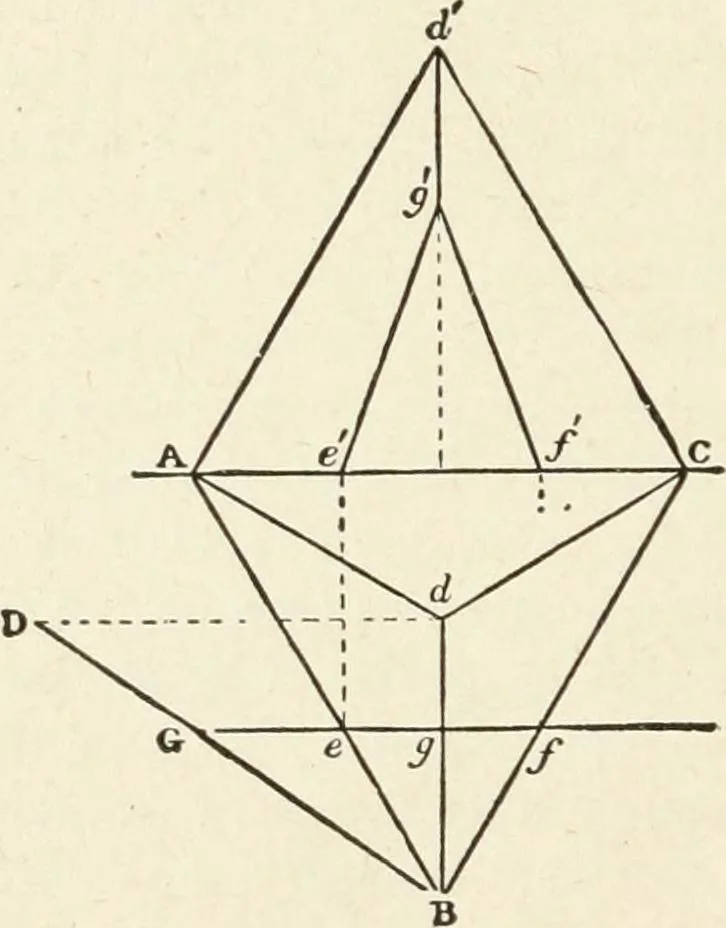

e horizontal pro- 38 MODERN CARPENTRY jection of the arris C d, the height of the sohd, andthe length of the arris as a hypotenuse), and by draw-ing through g the line g G perpendicular to C d, to in-tersect the hypotenuse in G, and carrying the heightg G from c to g in the vertical projection. One… … Pig. 19. XV. Given a tetrahedron, and the trace of a plane(perpendicular to one of the planes of projection) cut-ting it, by which it is truncated, to find the projectionof the section. First when the intersecting plane is perpendicularto the horizontal plane (Fig. 19), the plane cuts the SOLID…
