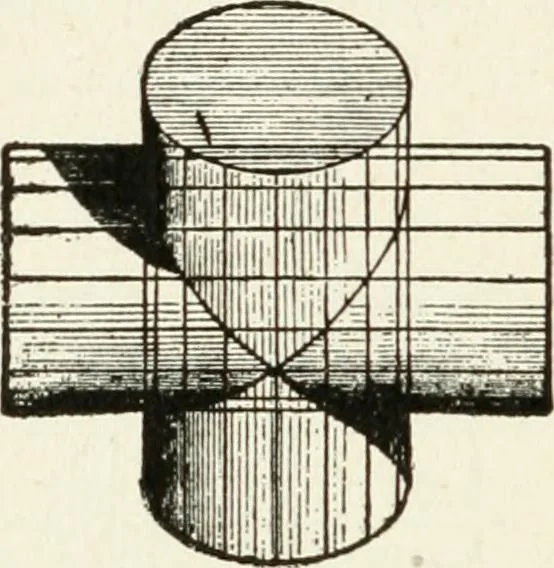

h and the same with other points i, k, 1, m.It is not necessary to draw a plan to find these pro-jections. All that is actually required is to draw thecircle representing one of the bases (as n o) of thecylinder laid flat on the horizontal plane. Then toproduce g h till it cuts the circle at the… … Fig. 57. XLVI, To construct the projections of two unequalcylinders whose axis intersect each other obliquely. Let A (Fig. 58) be the vertical projection of the twocylinders, and h S d e the horizontal projection of theiraxis. Conceive in the vertical projection, the cylin-ders cut by any number of…
