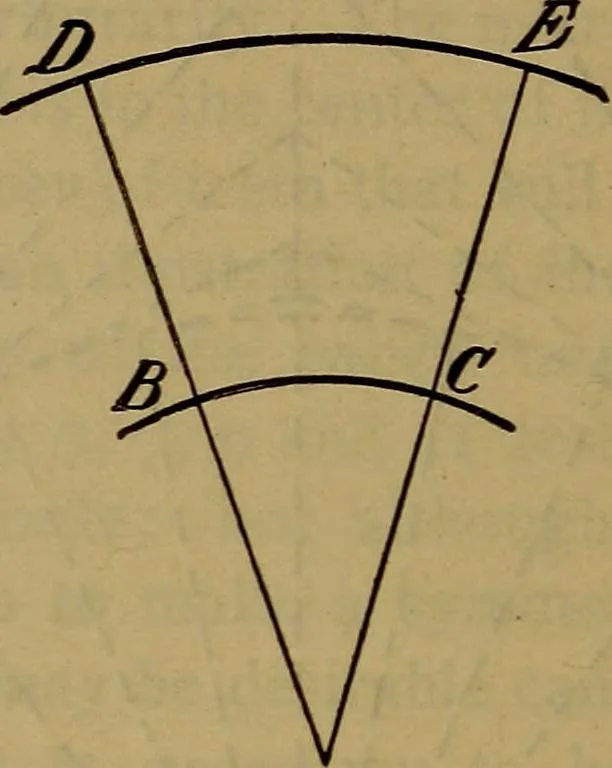

gj?5i ji 3Dni2 nrr.c fi^^^s.bnsq 31? •vt^d norloHi 5rh rri 7:: 112 THE MODERN CLOCK. long, as in Grahams plan, in which the pallets embraced138° of the escape wheel, the value of the impulse receivedfrom the scape-wheel and communicated through the palletsto the pendulum is no doubt greater with a… … A Fig. 29. Note the diflference ia length of arc for the same angle. with less weight, for it is easy to see that the longer thepallet-arms are the greater will be the distance the teethof the escape wheel will have to move (run) on the circularpart of the pallets. See Fig. 29. The extra amount…
