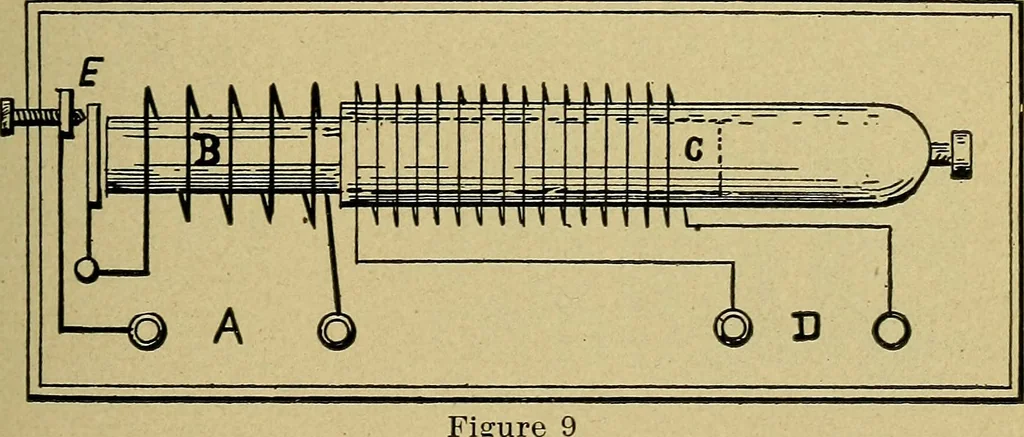

ring. When the receivers are removed, a springforces the hook upwards making the connection shown insolid lines. This closes the battery circuit which must beopen when the instrument is not in use or the battery willrun down. The talking circuit is now complete from earth, g, throughthe receiver,… … Figure consists of an iron core, B, usually made up of a numberof soft iron wires; and two electrical circuits insulated fromeach other, and terminating in the two pair of binding posts,A and D. Of these two circuits A consists of a short length 26 MODERN ELECTRICAL CONSTRUCTION. of comparatively…
