The modern gas tractor, its construction, utility, operation and repair: a practical treatise defining every branch of up-to-date gas tractor engineering, driving and maintenance in a non-technical manner. Considers fully all types of power plants and their components, methods of drive and speed changing mechanisms. Describes design and construction as well as practical application of tractors in the field (1919)
Pagé, Victor Wilfred, 1885-1947 · New York : Scientific American Pub. Co. · leaf 323

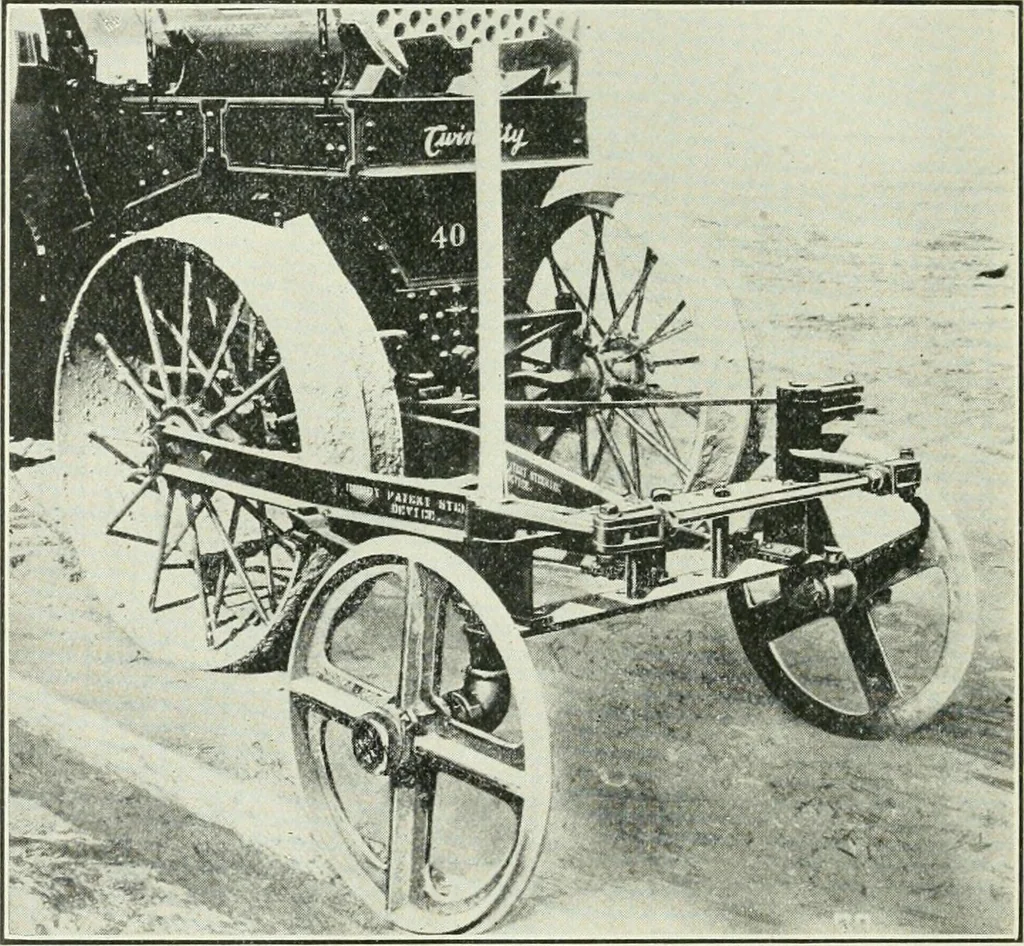

be S3 < ao 316 The Modern Gas Tractor any movement of the wheel will be transferred backto the front axle. An arrow carried at the end of astandard so that it can be conveniently glanced atby the operator from time to time serves a,s a directionindicator and a guide by which the course of the… … Fig. 136a.—^The Cuddy Automatic Steering Device Appliedto Ackerman Type Front Axle. readily ascertained. In the device shown at Fig. 136-Athe action is somewhat similar to that previously de-scribed, except that two wheels are used and a systemof leverage is employed to change the direction of The…
Farm engines · Internal combustion engines
