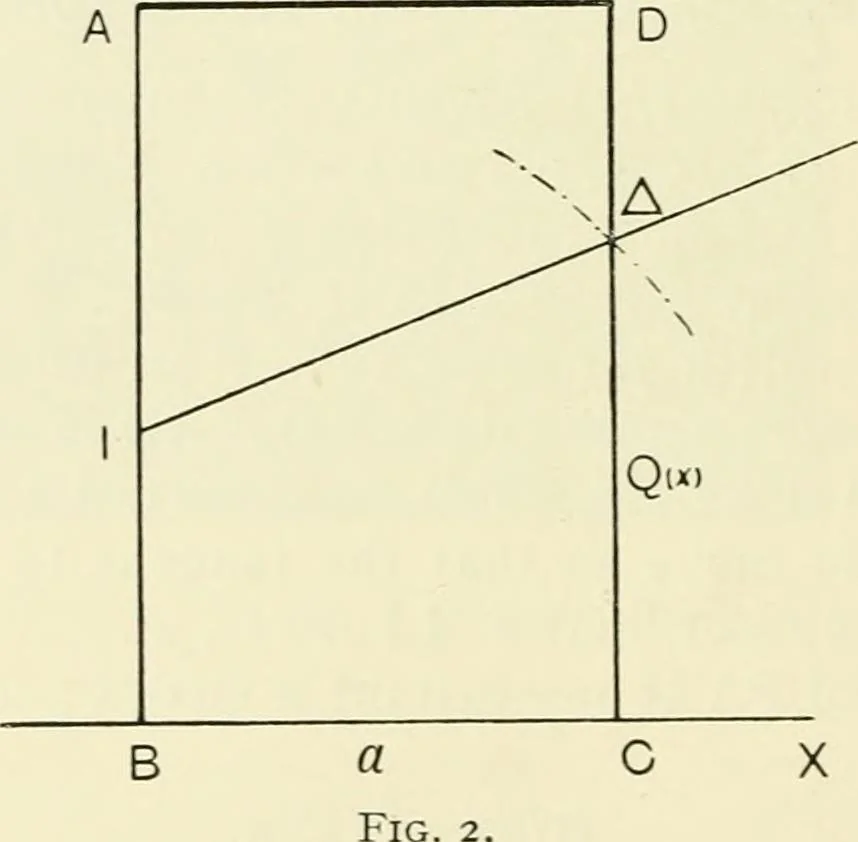

-a- P C Fig. i. Integraph for the Linear Differential Equation ay -\-y = Q{x), in which a is a Constant § 2. Connect A and I on the rectangular frame by a rod ending in Iand slotted for A. Let the integrating wheel attached to I be kept tangentto IA, so that the tangent to the integral curve traced… … If, as before, I is the point (x, y), A the point of ordinate Q{x), whileBC = tf, then the gradient of IA is (Q(*)-?)/«. Hence /HQ(*)-*)/«, or ay+y = 0{x) (3) We note also that when IA is parallel to BC, y =0, and the integral curvein general has a turning point. When IA is itself the tangent at A…
