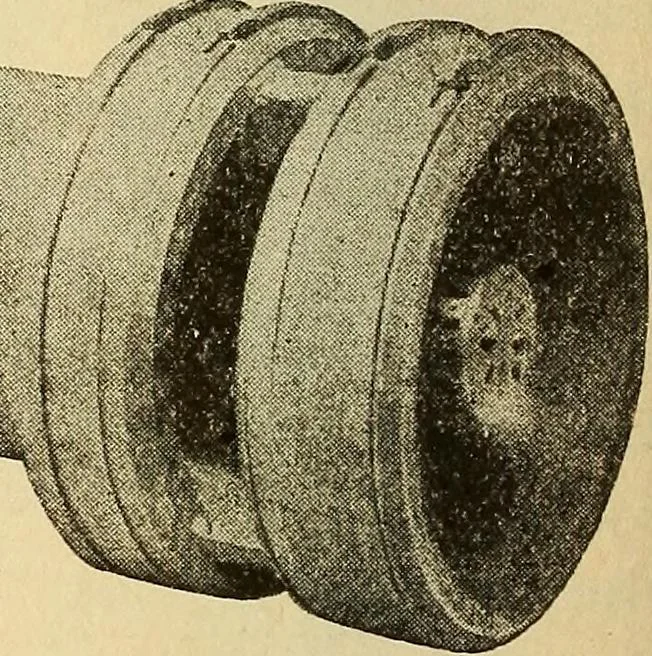

FlGURE 124 vented from entering the steam-ports when the valve isin motion by the narrow bridge across the steam-portsof the bushing, as shown in Fig. 123. The operationof the valve is clearly shown in Fig. 122, the directionof the steam being indicated by arrows. When the low-pressure cylinder is…
