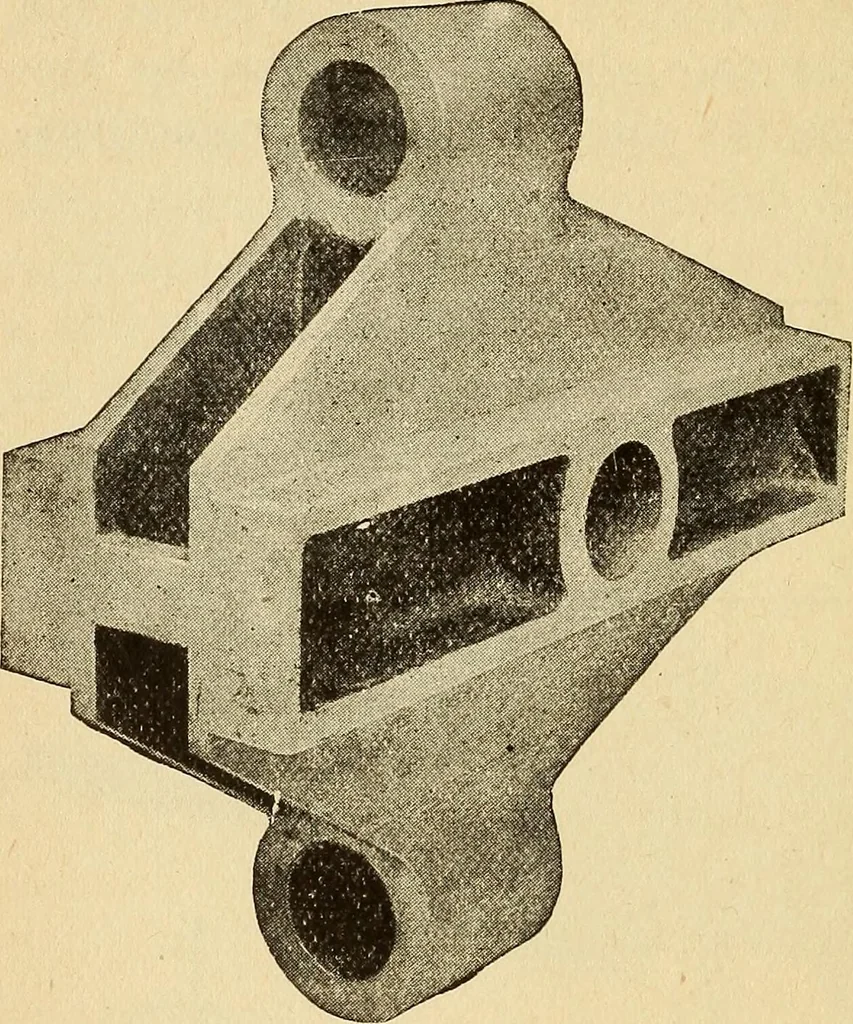

rom thelinks to thevalve-rod. Thatwhich has prov-ed most satisfactory is to attach the ends of the link andvalve-rods to the arms of an intermediate oscillatingshaft. This arrangement allows for the free vertical movement ofthe end of therod attached tothe link, andgives a parallelmovement tothe… … Figure 126
