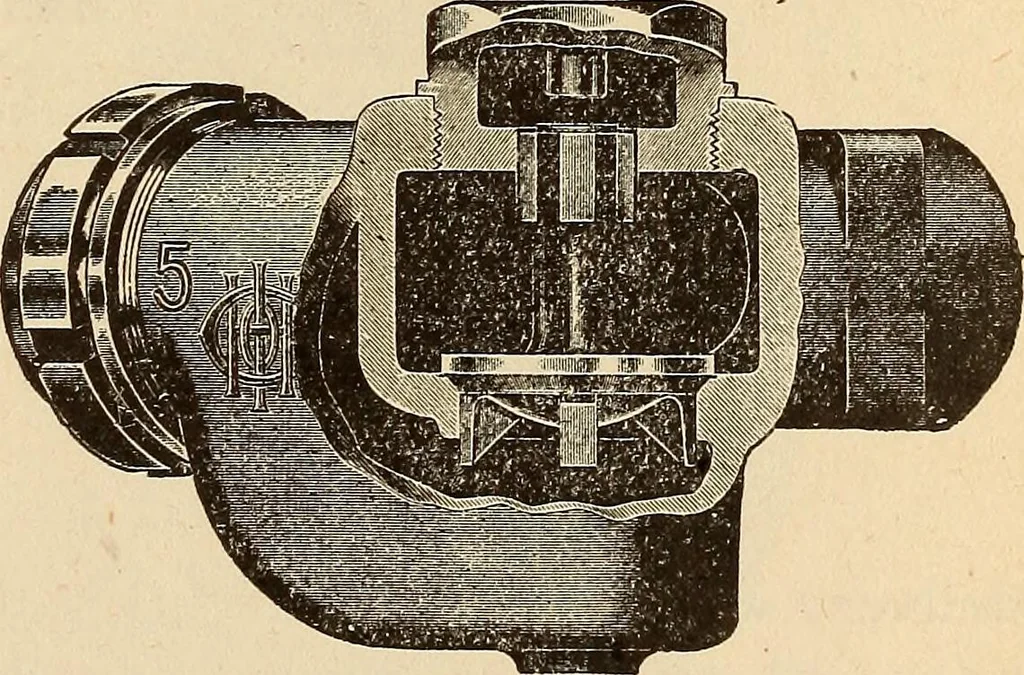

ery Small Medium. . .Large 2200 gals.3900 6000 f inch. 1 11 -- 1^ inch. 2 21 f inch.1 Pipe Connections. For steam, suction and deliveryconnections, see above table. Place a globevalve in thesteam pipe fora starting valve,and anothervalve in suctionpipe for a watervalve. If the boilerwasher is to… … Figure 176 bSectional ViEvr of the Hancock MainBoiler Check Valve 386 LOCOMOTIVE ENGINEERING under a head, open the water valve in the suction pipeand then open the valve in the steam pipe. Vary the temperature of the delivery water by regu-lating the steam and water supplies with either…
