Modern locomotive engineering, with questions and answers .. (1913)
Swingle, Calvin Franklin, 1846- [from old catalog] · Chicago, F. J. Drake & co · leaf 427

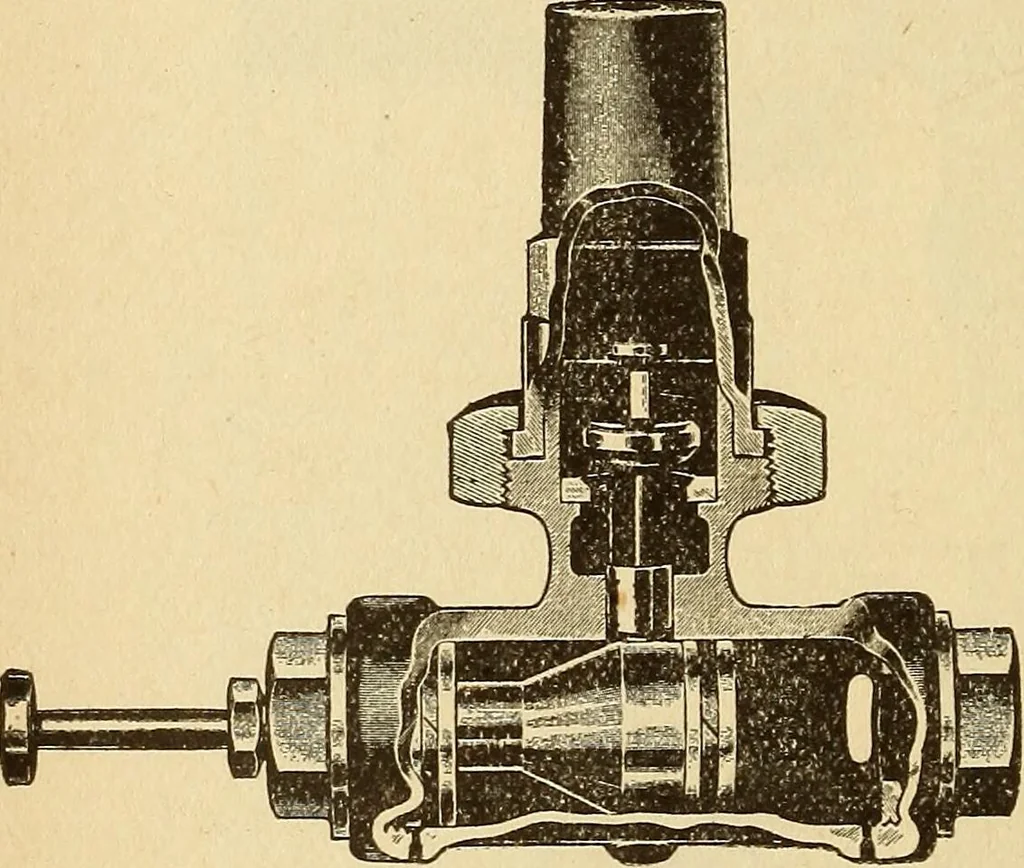

e sandtrap to sand boxor sand pipes bymeans of the un-ion couplings inthe most conven-ient position; theplugP must pointstraight d o w n -ward and the airsnouts mustpoint in the di-rection o: the de-livery.Connect the ejector to sand pipe in such a way that the blast will strike in about the center… … sectional view Figure 208 Hancock Pneumatic Cylinder Cock INJECTORS, STEAM GAUGES, ETC. 421 in both directions, as illustrated. This will lead thecondensed water, resulting from a leakage of the steamvalve, down the drip pipe and thus prevent the freez-ing of the ejector pipe in cold weather.…
Locomotives
