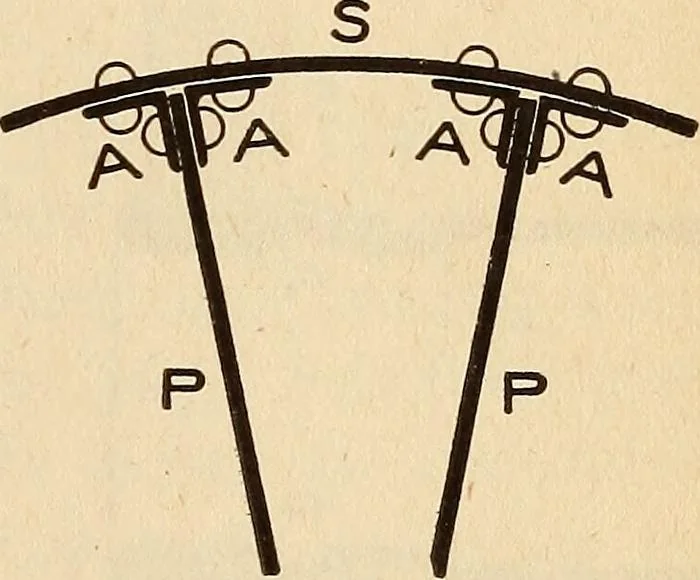

Figure 15 are of necessity thicker than the shell, owing to thefact that they are considerably weakened by the holesdrilled in them for the tubes. By reference to Fig. 6the arrangement of the tubes will be clearly under-stood, N being the fire-box end and M the smoke-ooxend. Fig. 10 gives a view of…
