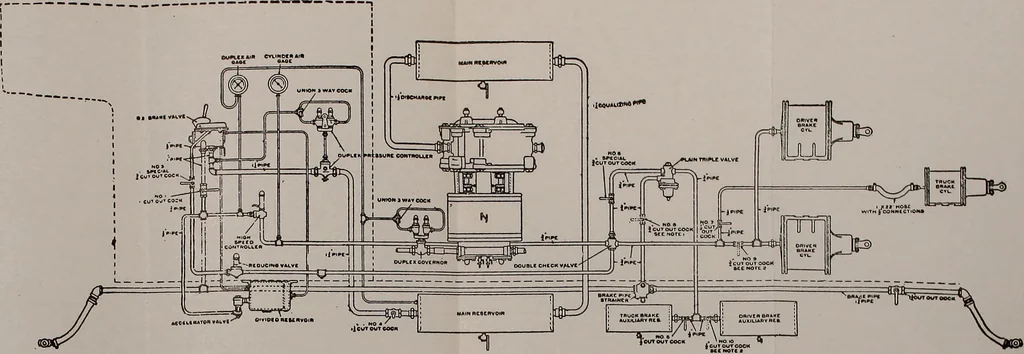

akes in an emergency, move the handlequicklv to Emergency position, and leave it there until thetrain stops, or the danger has passed. In case the automatic brakes are applied by the burst-ing of a hose, the train parts, or a conductors valve isopened, place the handle in Lap position to retain… … PIPING DIAGRAM B!J—HS EQUIPMENT. 15-| 52 &1 B2 EQUIPMENT 631 The handle of the brake valve will be found to v^rorkfreelv and easily at all times, as the pressure on the mainslide valve does not exceed the maximum brake pipe pres-sure. The cylinder gauge will show at all times the pressurein the…
