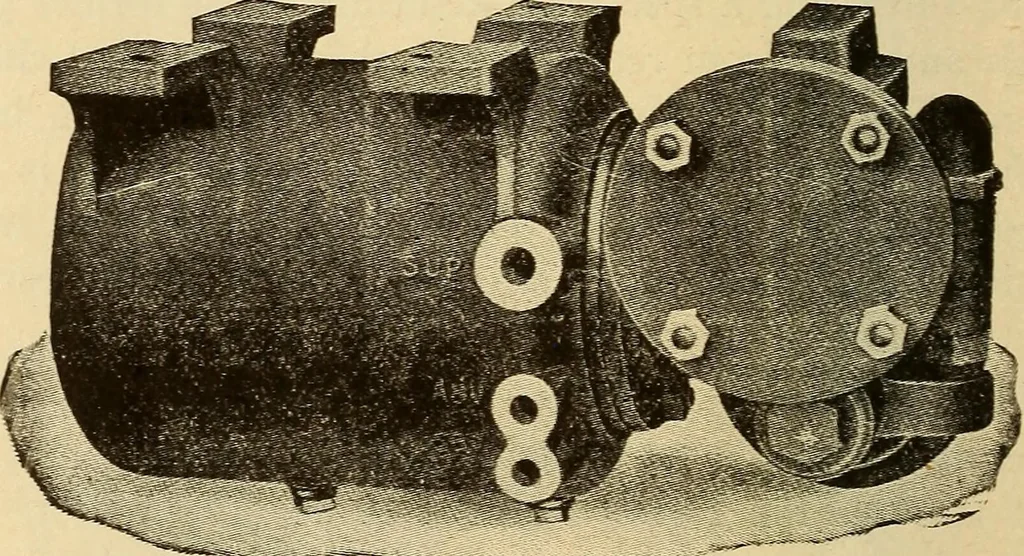

lchoke fittings to prevent serious loss of main-reservoirair, and the release of the other locomotive brakes duringa stop, in case of burst brake cylinder hose connection.The cylinder gauge is connected with the brake cylinderpipe. The automatic-brake-valve pipe connections, other thanalready… … FIG. 296. DISTRIBUTING VALVE AXD DOUBLE-CHAMBER RESERVOIR COXXECTIOXS: SLP—Main-Reservoir Pipe; ABV—Double-Heading Pipe; SBV—Application-Chamber Pipe THE DISTRIBUTIXG A\\LVE. This valve is the important feature of the ET equip-ment. Fig. 296 is a photographic view of the left side ofthe valve and…
