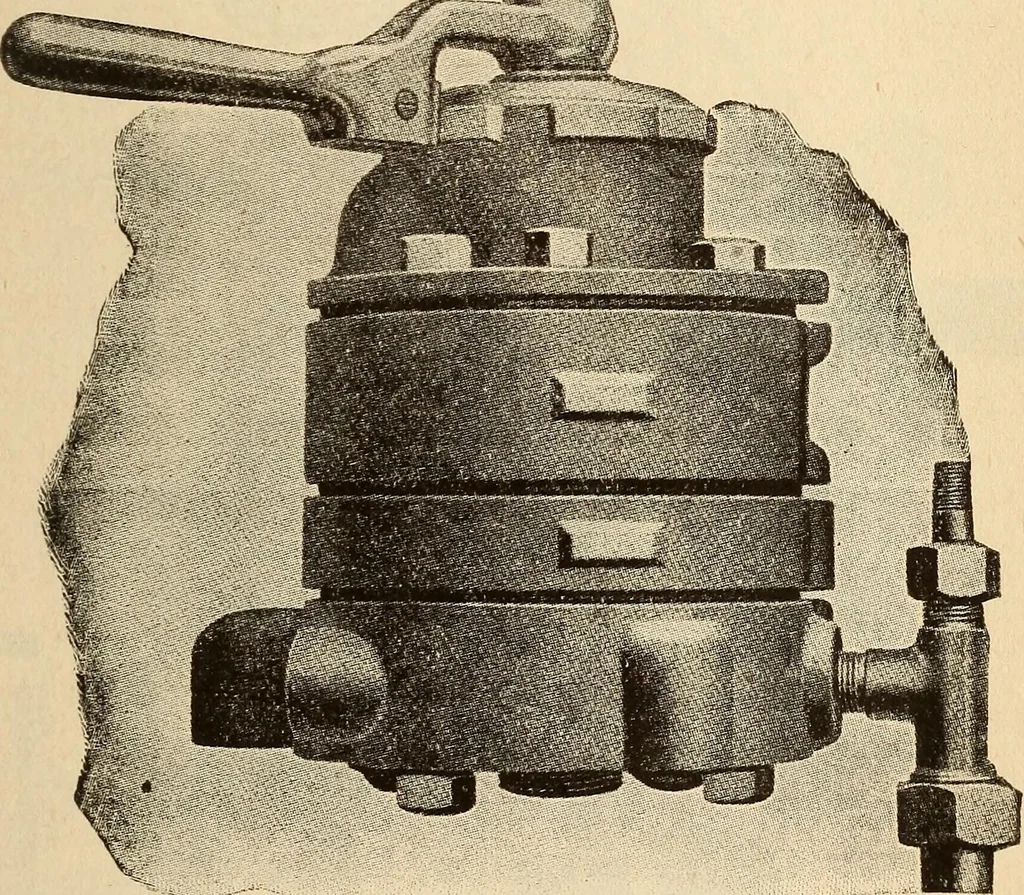

ifferent in detail, since it not only performsall the functions of such types, but also those absolutely ET BRAKE EQUIPMENT 697 necessary to obtain all the desirable operating featuresof the Distributing Valve. Fig. 310 is taken from a photograph of this brakevalve, while Fig. 311 shows two views,… … FIG. 310. TYPE H BRAKE VALVE Fig. 312 is a top view, showing the six positions ofthe brake-valve handle, which are, beginning at the ex-treme left. Release, Running, Holding, Lap, Service andEmergency. 698 LOCOMOTIVE ENGINEERING
