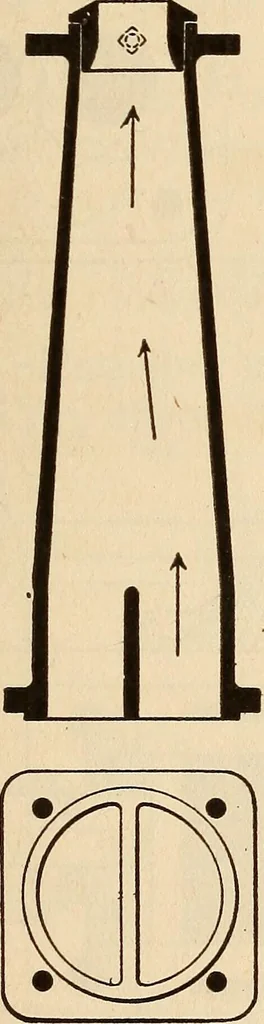

by increasing the draft. These bushings aremade of various diameters and are easily removed inorder to substitute others with larger or smaller open-ings as they may be required. If the exhaust orifice is Figure 35 THROTTLE AND DRY PIPE 91 too large the draught through the tubes will not…
