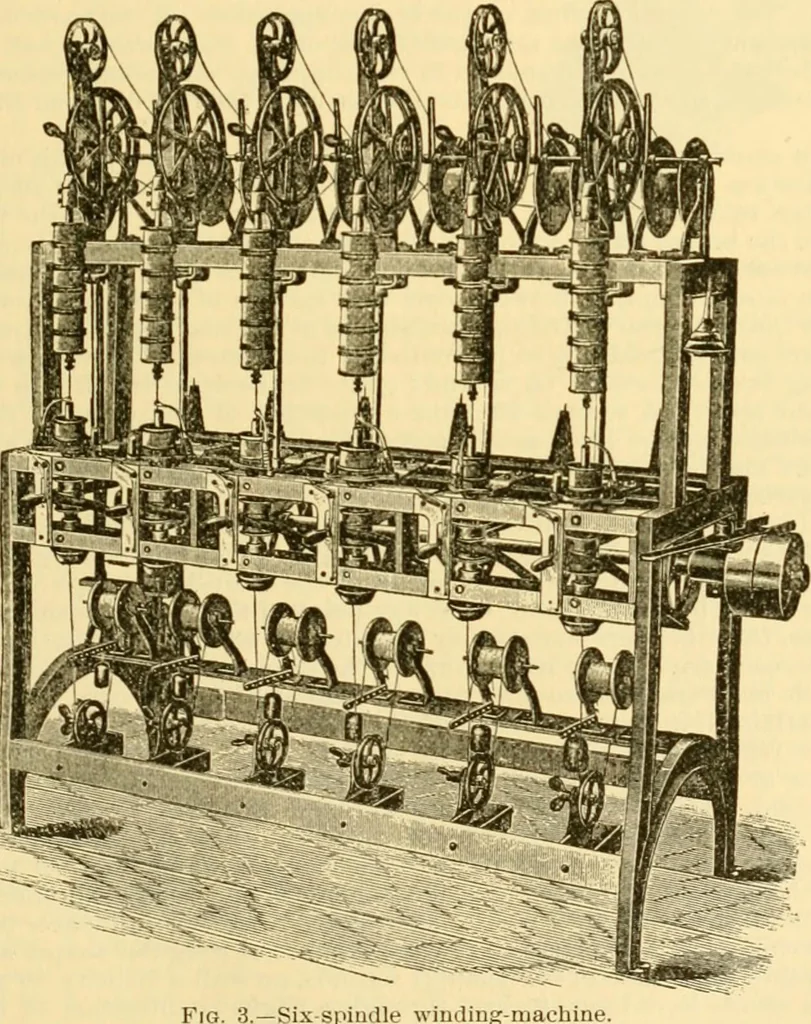

l spool or ona reel is placed on the stand-ards under the machine (a tension regulated by the adjustment of the weight being applied);it then passes around a small sheave-wheel, which is so arranged that it can be lowereddown into the pan for holding a solution of white lead or other insulating… … te^ Six spindle wiuding-machine. 86 BRAKES. loose pulley being chambered and filled with wool to retain the oil for lubricating. The wirethen passes up through the disk on wliich the tlicr is fastened, with a counterbalance oppo-site. The spool is placed on the spiiulle, and the thread carrieil…
