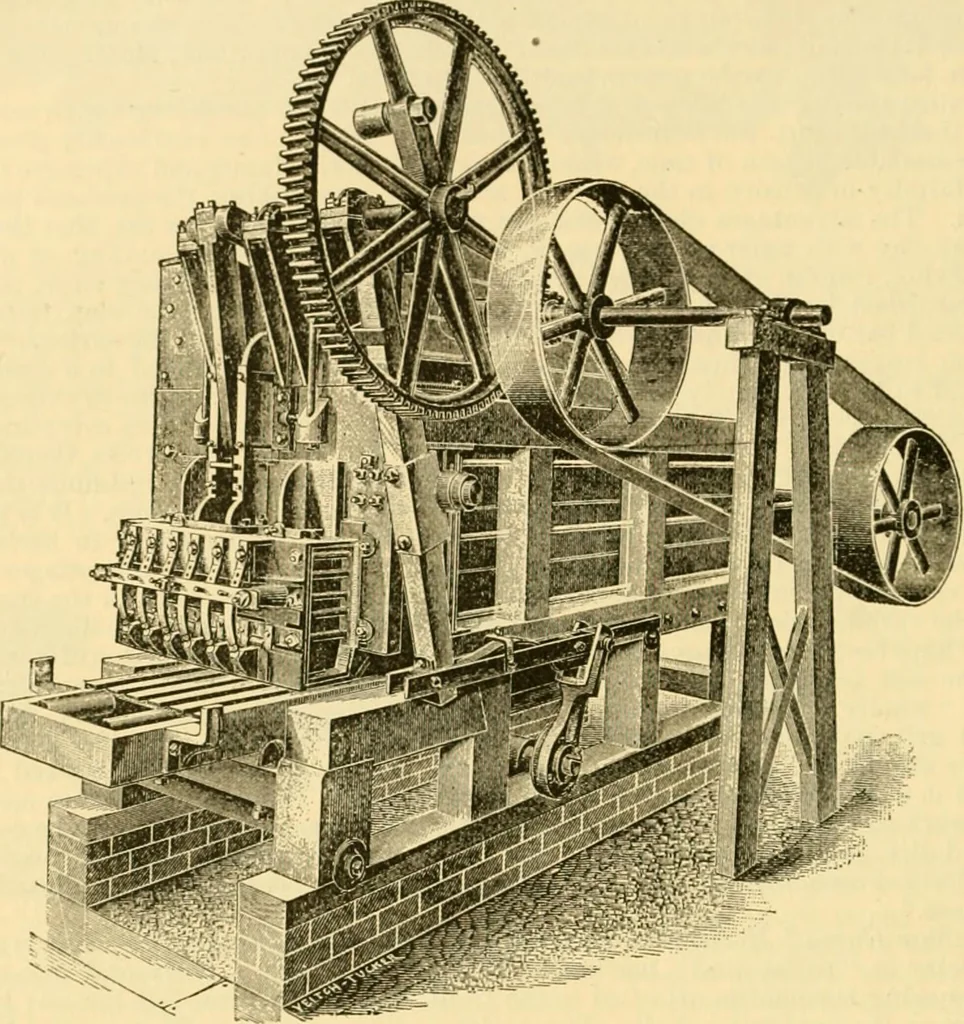

brick that door will fly ojien and allow it topass out, leaving the remaining five bricks in the mold perfect, or if the obstruction coversmore than one brick it will open two or more doors and pass out. Tliis arraiigciiunt preventsbreakage and wear and tear on the molds. On the side of the machine… … Fig. ].—The New Haven brick-machine. large steel screws that work in heavy iron cross-beams. The ejector-carriage is of iron, withwood buffer strip on the front to protect the molds from wear. Its four rollers run on aii inmtrack on table. Tlic carriage has a cpiick return motion, wliich allows…
