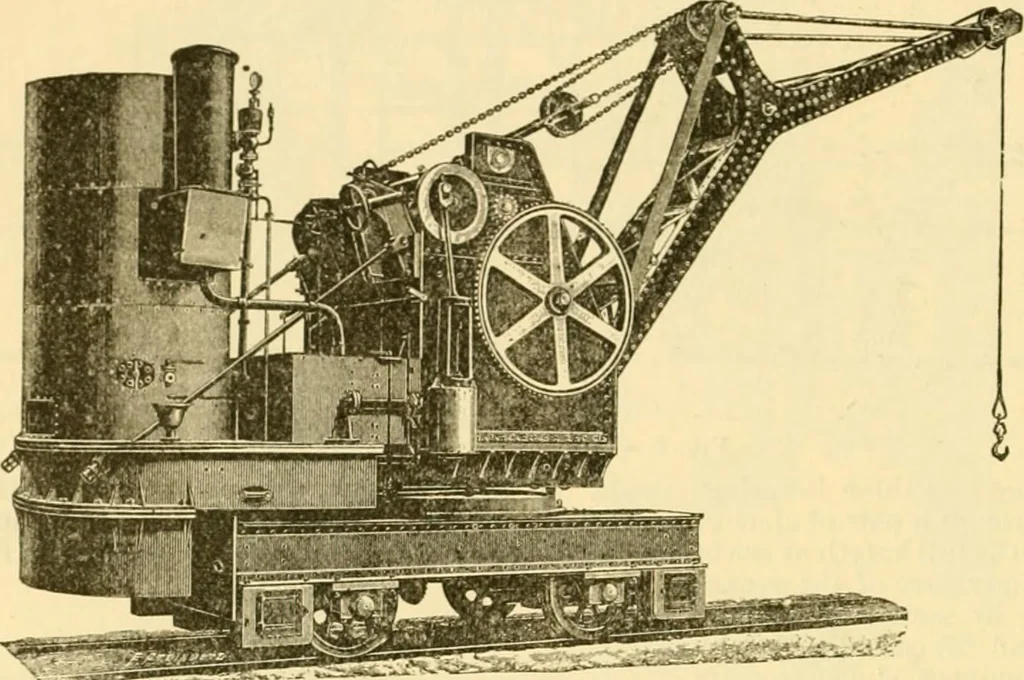

he travel-ing-bridge, the engine furnisliing motive-power through the necessary spur-gearing for thethree motions of the crane. This kind of crane is independent of all other motive-power ofthe works in which it is used, and requires merely to be supplied with fuel and water at someconvenient point… … Fig. 8.—Ldooiiiotive craue. the crane, being fitted with a motion which allows this radius to be varied. The hoisting isdone oy a galvanized steel-wire roiie, 1^ in. in diameter, which is wound on a specially largesteel barrel. This barrel is worked by double-purchase spur-gearing, the motion of…
