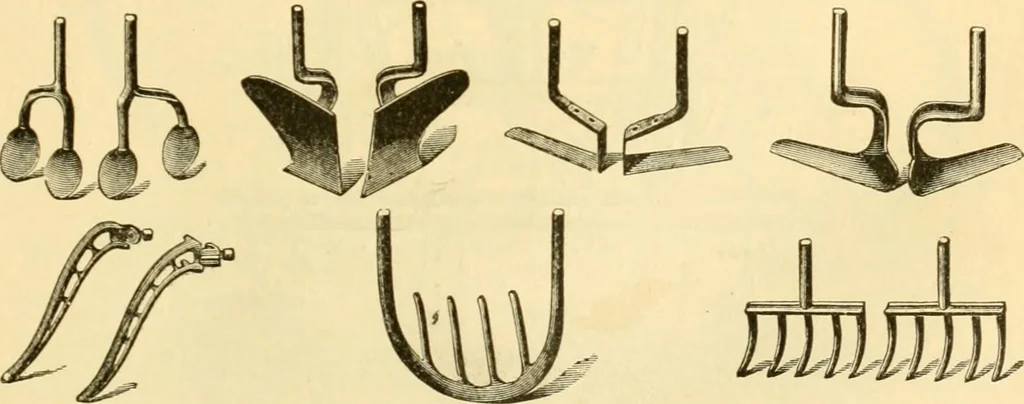

FiQ. 10. - Dueres garden hoe. machine with any of its different attachments, shown in Fig. 11. The handles are con-nected also with the arch in front by side-springs, permitting instant adjustment to and from … Fig. 11.—Garden hoe-attachments. 166 CULTIVATOKS. the row by the operator, A still siiu[)ler haiul-iniplement with wheels, of the same class, isshown ill Fig. 12. The two implements last named are for garden-culture.
