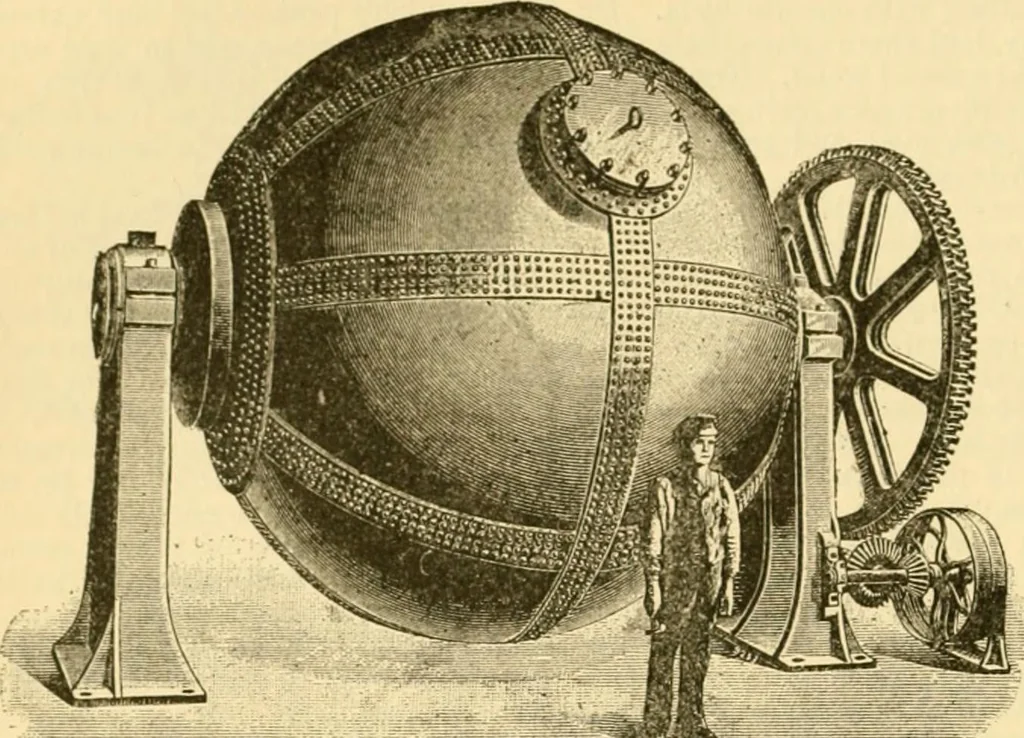

filledthrough the man-hole,which is 2 ft. in diam-eter, from a high lev-el, with timber andsulphite liquor, andsteam passes in at a pressure of 70 lbs. through the trunnions, while the digester is slowly re-volved by means of the l)evel and worm gearing, as shown in the engraving.Disintogr.ator:… … Fig. 1.—Wood-libcr digcstur.
