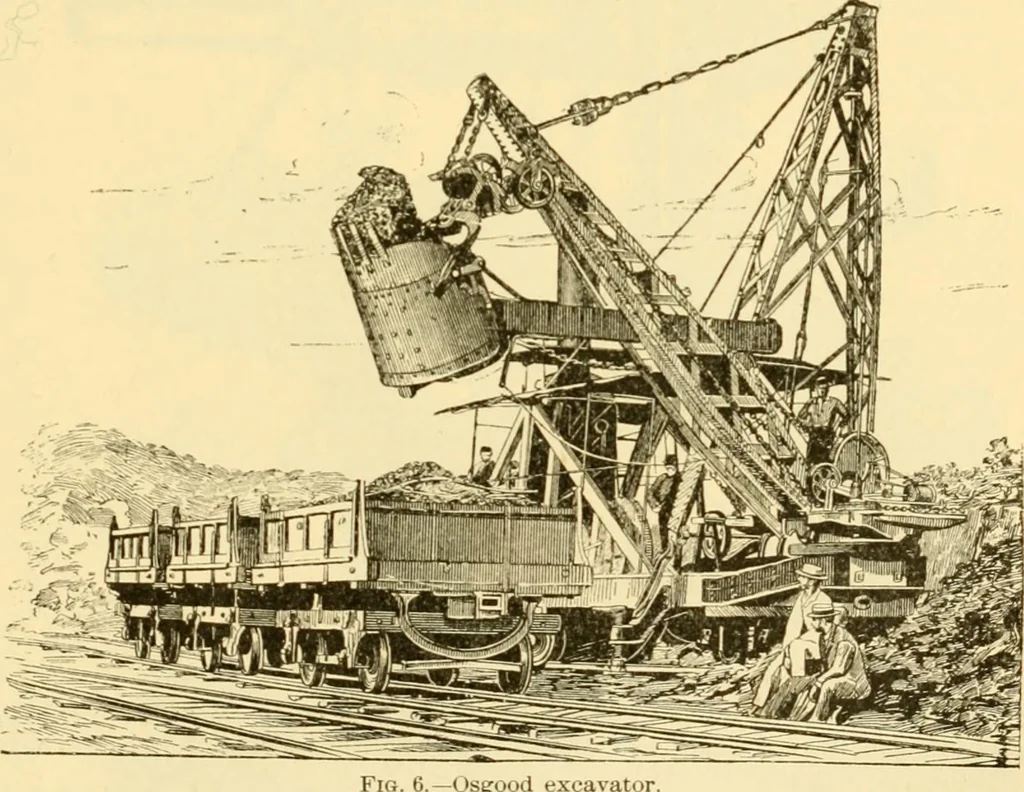

rizontal, giving a low center of gravity, and thewater-tank of iron and a coal-bunker of inm are placed on the boiler-end of the platform.The endless chain of buckets is operated on the over-and-under system. The liuckets aremade with a (piadrangular hemispherical face and no Ijack. The links are… … FlG. 6.—e>SK ting a slice all the way up the bank. As it pauses over the upper tumbler, the contents fallinto a hopper, and thence through a chute into a dump-car on the second track, and back ofthe machine. The engineer of the excavator controls its movements entirely, Iaising andlowering the…
