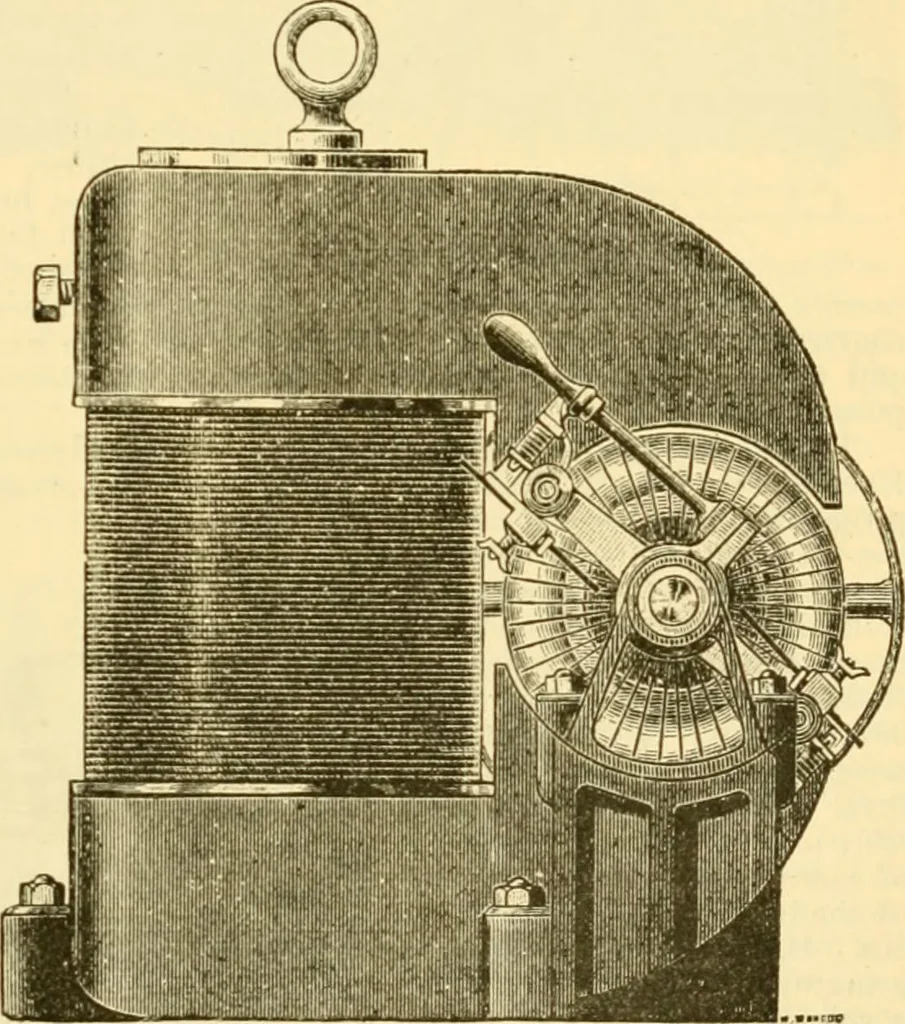

of toughened brass insulated with mica. Itis usual in these machines so to shape the pole-pieces that there is a smaller clearance oppo-site the highest and lowest points of the armature; this concentrates the magnetic field, andhelps to prevent its distortion by the armature-current. In a 24-unit… … Jy di naiiiu. 222 DYXAMO-ELECTRIC MACHINES. •013 ohm. With a speed of 1.050 revolutions per minute the current was 220 amperes, themachine being nearly self-regulating for 111 volts. This machine is known as the Man-chester dynamo. Its efficiency is 909 per cent.
