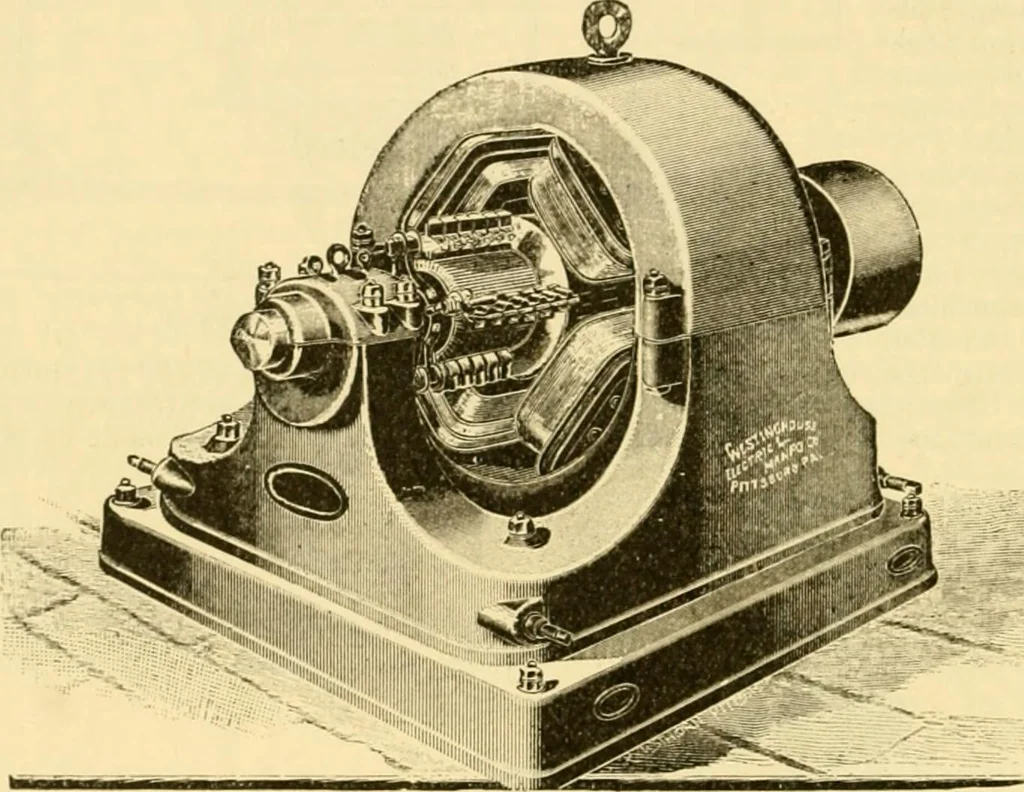

nuichines for the iiistalhitionat the railway stati(m in Fninkfort-on-tlie.Main. Kach of these machines is intended for anoutput of 75kilo-watts, at a speed of loO revolutions per min. Large dynamos built on thisprinciple are also in operation at the Berlin electric-light station, working up to… … .•5^ Fio. 70, —Westingliuuse f^enemtor. bolts. These bobbins carry the shunt and series coils, which are put on side by side and donot overlap. The pole-pieces are laminated, being built up of thin sheet-iron plates cast intothe cylindrical yoke. The bearings and this cylindrical yoke part along a…
