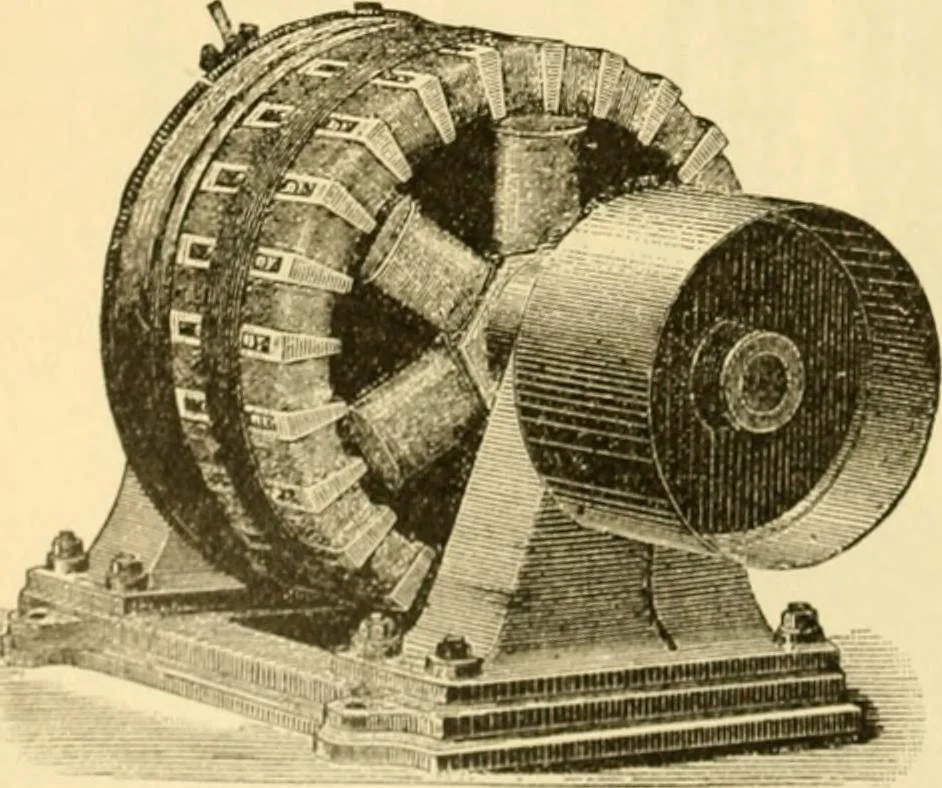

poles. 0am tf* ro..s jllu/fipnfar Co7itinunuH-Currcni Diiufivio.—In order to construct amachine which should have a large outjiutwith a comiiaratively small weight of mate-rial. Messrs. (ianz&(o.. of I5uda-l*esth. havedesigned the nuichine shown in the accompanying illustration (Fig. 71). As… … Fio. 71.—Oanz multipolar dynamo. DYNAMO-ELECTRIC MACHINES. 227 nets. The armature, which is destined for a 6-pole machine, is wound so that one sixth ofthe number of coils will generate the necessary dilference of potential of 1,500 volts. Thesesix sections are then joined in parallel in order to…
