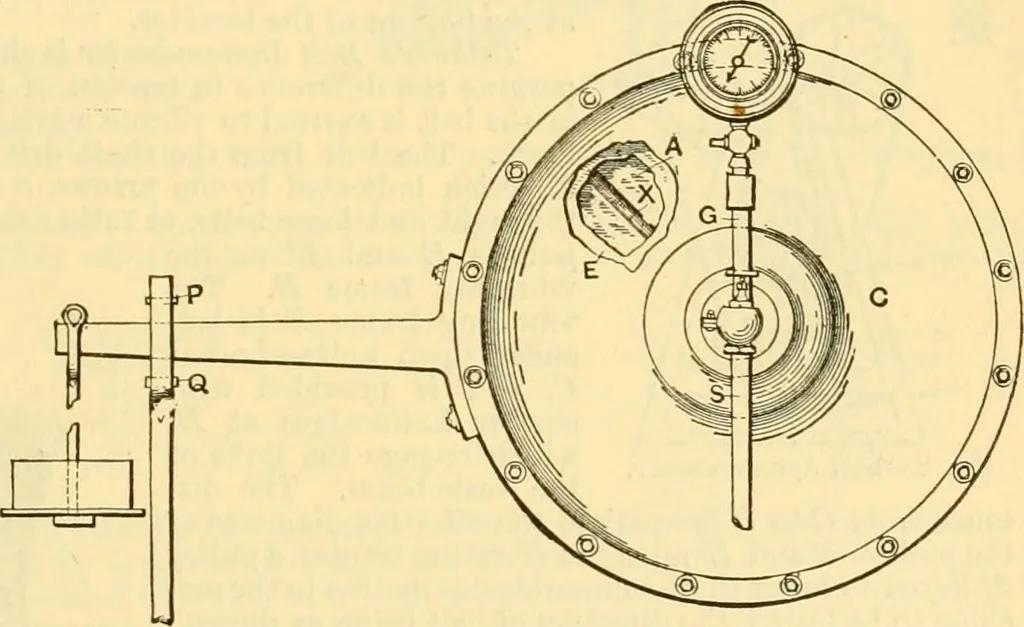

ive the desired load. The engine is started, andwhen up to speed a valve is suitably opened in the water-pipe leading to the automatic valve,which latter, being open, allows water to pass to the outer compartments. The pressure ofthis water forces the copper plates against the sides of the… … Fig. 1.—Aldens absorption dynamometer. * Average of full load measurements. 246 EJECTOR, PNEUMATIC. •til Supjtiii the brake and regulating the moment of the friction on the disk to the moment of the weights api)lied to the arm of the brake. The Richards Absorption Dynamometer, designed by Mr. C. B.…
