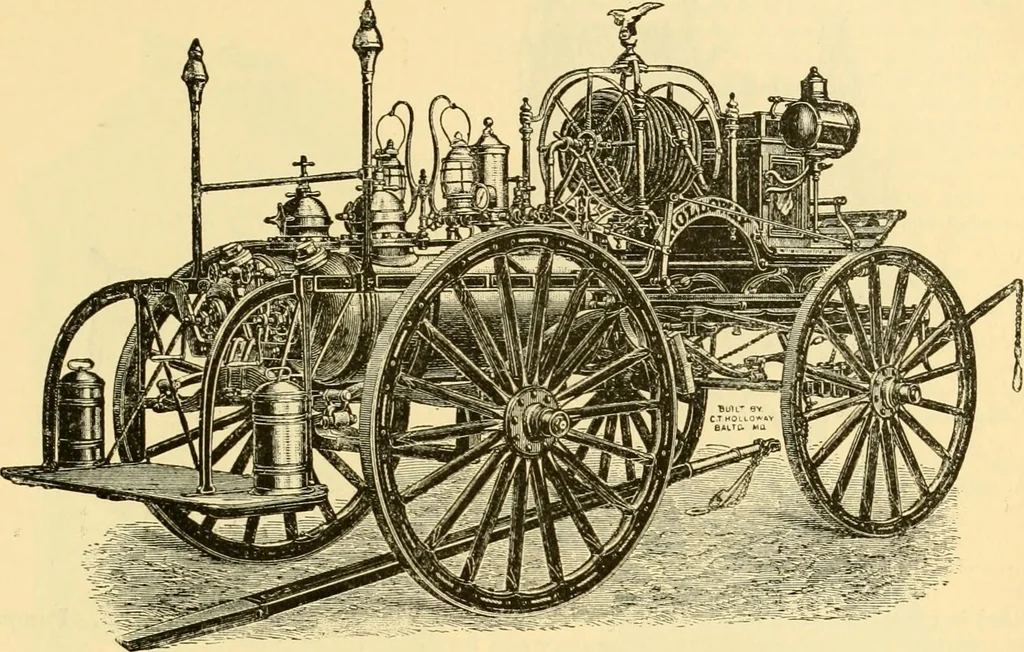

Fig. 1). In tliis macliine the principalimprovements are in (constructive detail. The tanks (double) are of heavy polished copper,anil arc boiled on wrought-iron frames, and braced one to the oilier. The hose-gallery and ENGINES, FIRE, CHEMICAL. 259 automatic reel are carried over the frame-arch.… … Fig. 1.—Holloway chemical fire-engine. The discharge-pipes on the tanks are very short and without bends, allowing the free andunresisted passage of the solution from the tank to the hose. The double-tank engines arearranged to give a continuous stream without moving the hose. Wliile one tank is…
