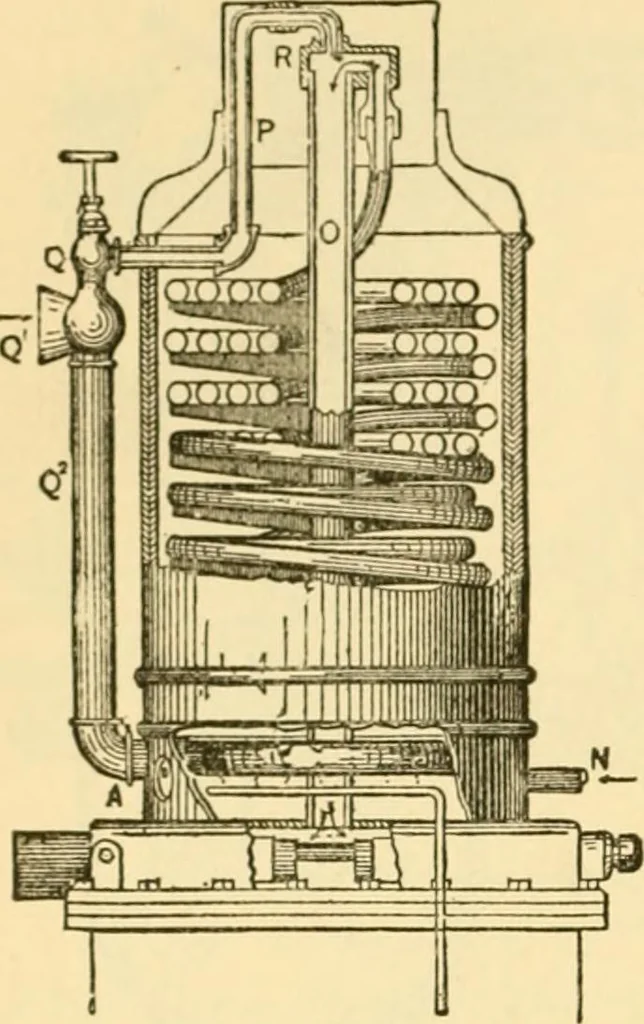

d inside the steam-space at the upperpart of the same boiler, so that the boiler efficiency should be the same as in the previous ex-periment. Naphtha of 0-G8 specific gravity was pumfied into the coil and vaporized by theheat of the steam. The vapor passed to the engine, worked the same (liston in… … Fig. 10.—Naphtha-engine boiler. Oas consumption in cubic ft. per hour Mean pressure naphtha in coil (lbs. per sq. in.) Mean pressure steam in boiler Mean speed in revolutions per min Tension on brake in lbs Work on brake in foot-pounds per min WORKING age:nt. Steam. Naphtha. 82-20 83-4S .).-,-80…
