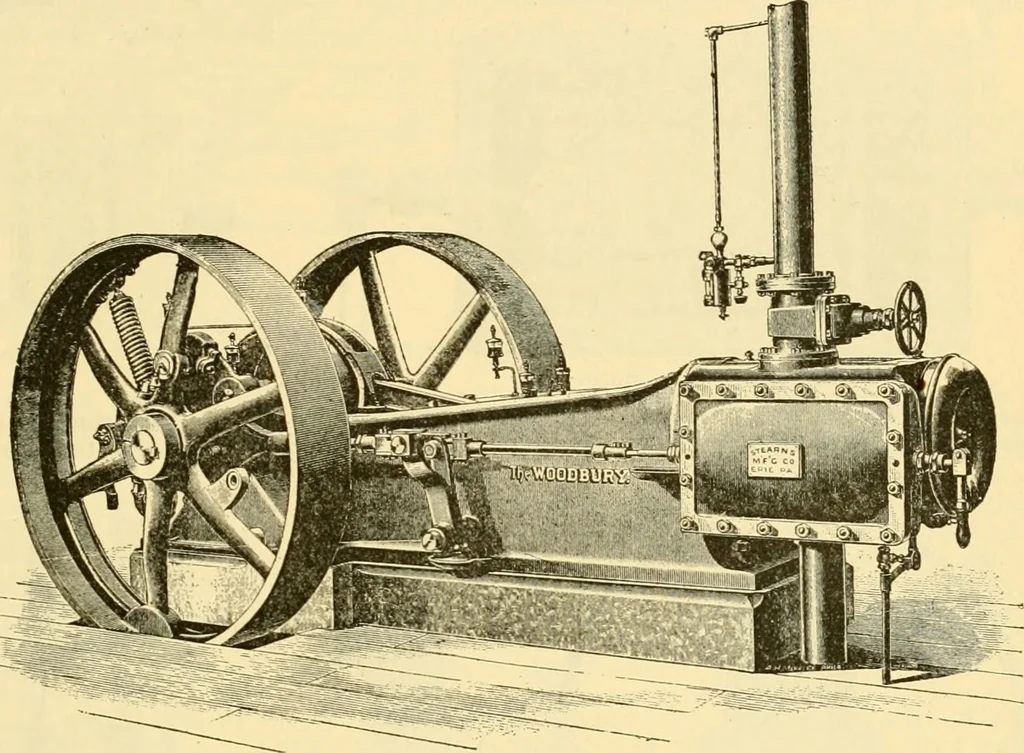

justing screw; and Fig. 7 is a back view of the valve. Referring to Fig. 2, steam-pressure is eliminated from the valve A by the relief-plate Bon the back, which is supported against steam-pressure at top and bottom by a forked ordouble wedge C, whose length is about equal to that of the… … Fig. 1.— ilie Woodbury engine. of the wedges, and consequent adjustment of relief-plate, is accomplished by the two adjustingscrews /1 (Fig. o), wliic% fit looselv through the cross-piece of wedge and are tapped into thtjrelief-plate. The collars m. which form part of adjusting screws, are notched…
