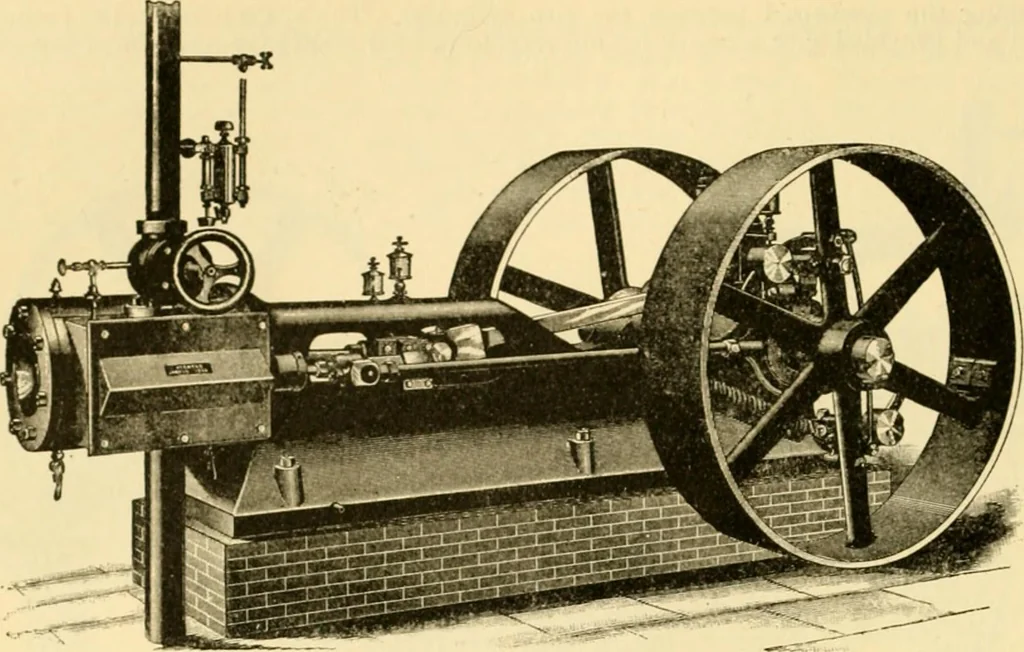

age made under full steam-pressure. The construction of the valve-bracket and slideIS shown in Fig. 36. The bracket is bolted to the bed and carries the slide, between thebracket and stuffing-box. On the valve-stem is a clamp-wrist, split in the back and pinchedon the slide bv a i-in. bolt, as… … Fig. 37.—The Valley engine. The Armingfon & Sims Engine.—Two recent styles of the Armington & Sims engine areshown in Figs. 38 and 39. The first is a double compound engine, with cranks at 180°, and
