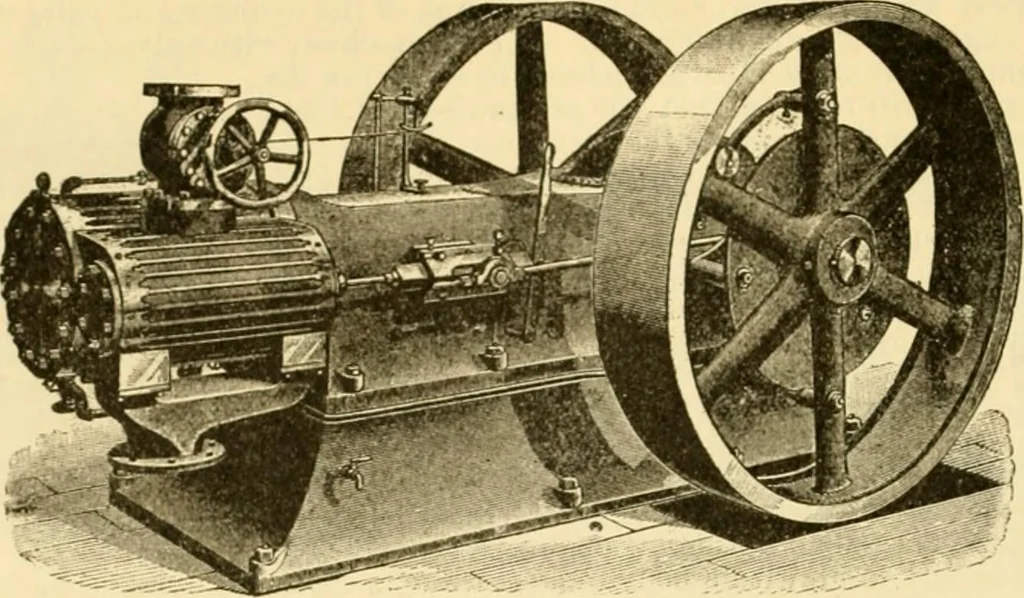

The Ideal Engine, made also by the same builders, is shown in Figs. 42 and 43. It is asingle-cylinder automatic engine, with the peculiar feature of being self-lubricating. Thesectional view shows the principle of the automatic oiling device. 312 ENGINES, STEAM, STATIONARY RECIPROCATING. … Fig. 43.—The uU-al fu^itie. The Sioxix City Corliss Engine, of the tandem compound class, is shown in perspective inPig. 44. Fig. 45 is a half-section of the cylinder, s-howing that the steam is taken between
