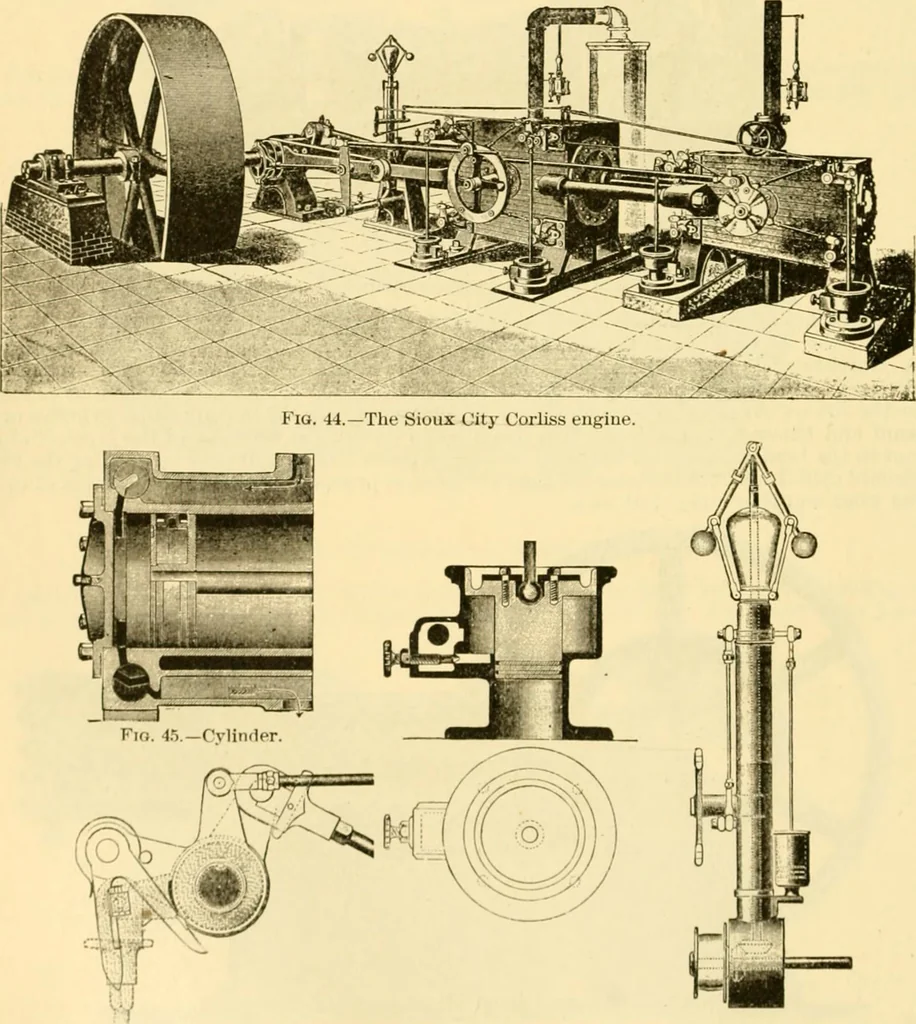

Fig. 43.—The uU-al fu^itie. The Sioxix City Corliss Engine, of the tandem compound class, is shown in perspective inPig. 44. Fig. 45 is a half-section of the cylinder, s-howing that the steam is taken between … Fio. 40.—Vulvcjccar. Via. -17.—Dash. Fin. IM.- (iovcrnor. Fui.s. 45-48.—Sioux City Corliss eiiKiiie—details. (not ov(!r) the valves, and that the exhaust-chamber is cast separate and independent from thecylinder, thereby preventing a cold, wet steam-jacket. The steam-valves are all made so as to…
