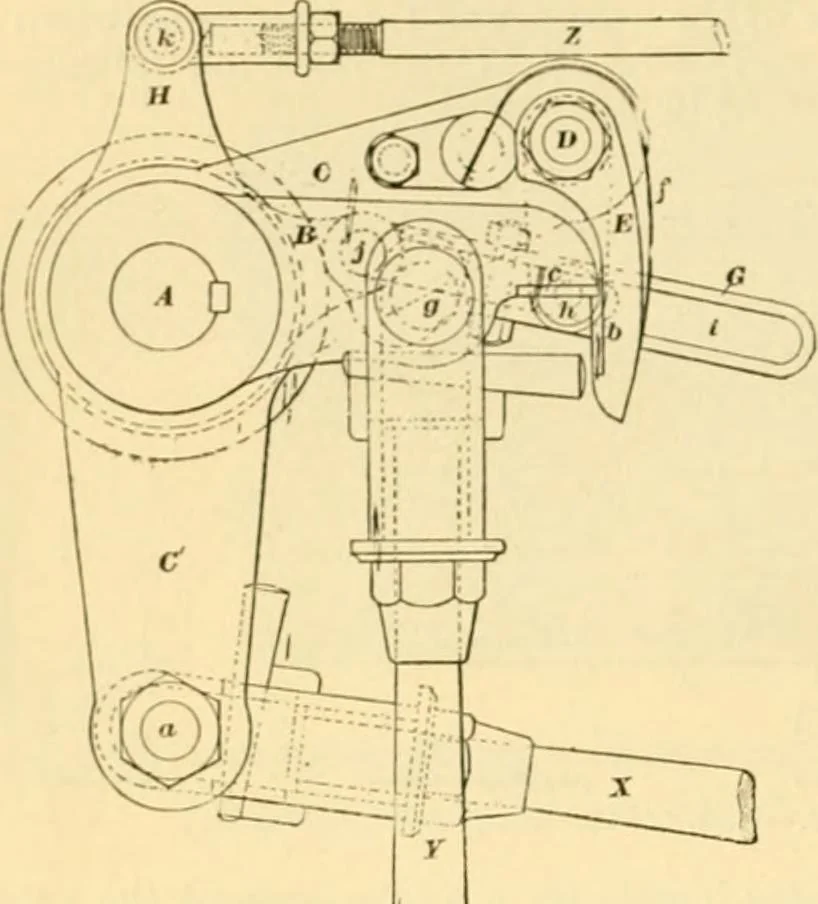

FiG. 50.—Fishkill-Corliss engine—valve-mOtion. 314 ENGINES, STEAM, STATIONAKY RECIPROCATING. belt be broken, or if from any other cause the governor-balls should fall below this point, thebell-crank H will be moved in the direction indicated by the arrow in Fig. 55, the emboss- … Fig. 51.—Front elevation.
