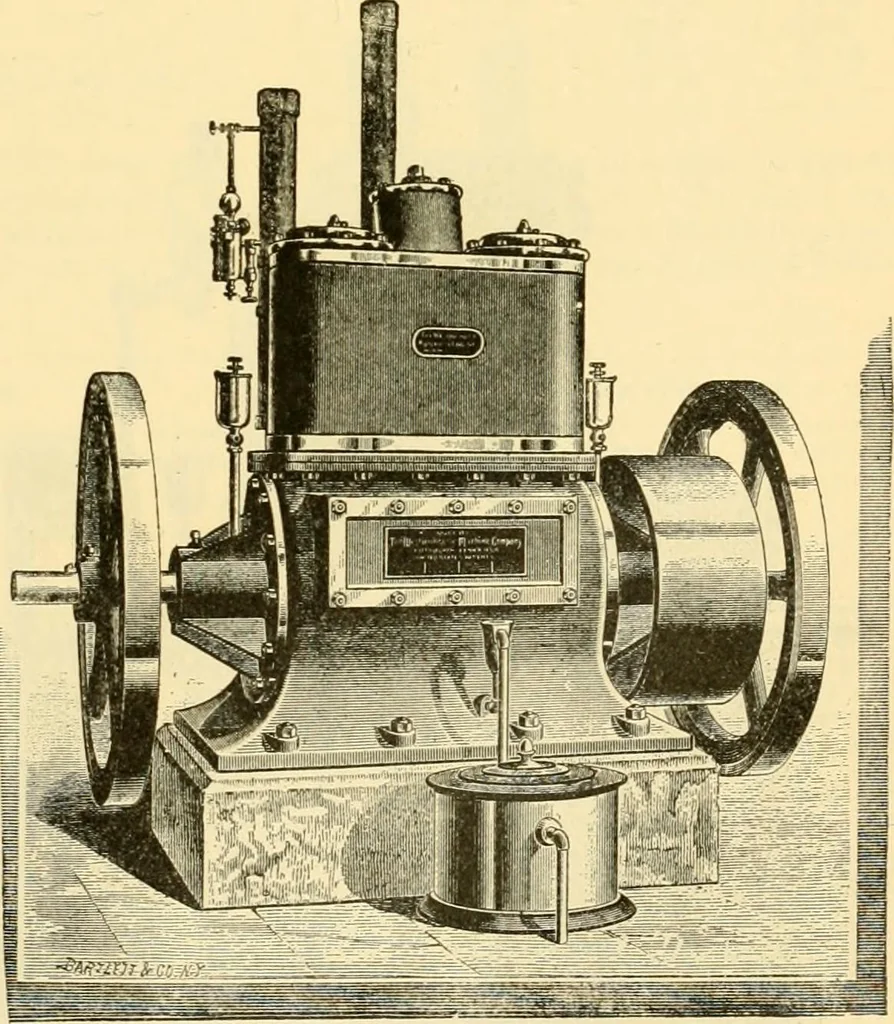

ith slow-speed engines. Fig. 57 shows a front view,and Figs. 58 and 59 sectionalviews, of the Westinghouse standard or non-compoundengine as built in sizes from 15to 250 horse-power. The fol-lowing is a description of the de-tails : The cylinders A A are castin one piece with the valve-cham-ber B,… … -The Westinghouse engnie. 31G ENGINES, STEAM, STATIONARY RECIPROCATING. case. The pistons D D are of the trunk form, double-walled at the top to prevent con-densation, open at the bottom, and carrying tlic hardened steel wrist-pins bh. They are eachpacked with three rings. The connecting-rods/i-are…
