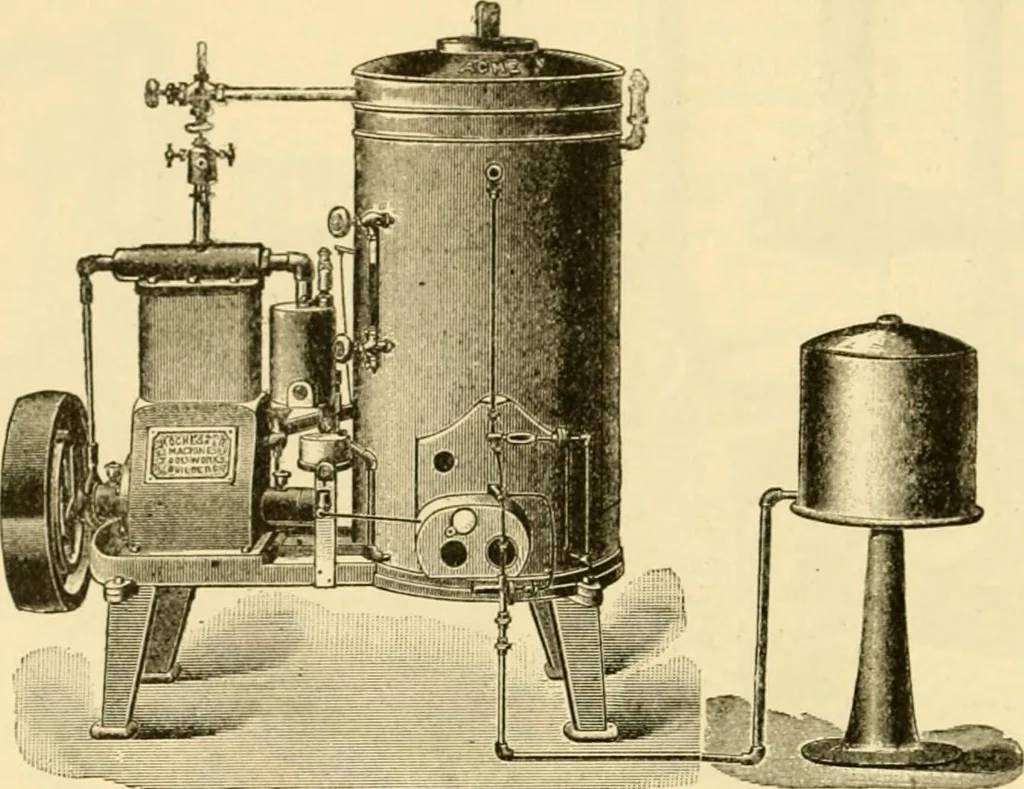

320 ENGINES, STEAM, STATIONARY RECIPROCATIN(;. The Acme Automatic Safety Engine and Boiler, made by the Rochester Machine-ToolWorks, Rochester. N. Y., is sliown in Fijjs. (55 and GO. The engine (Fig. 05) is an upright double-cylinder, single-acting engine, with cranks 180°to each other. The pistons… … Fig 65.—The Acme automatic safety engine. wrist-pins being slightly below the center of the pistons, and the steam-rings above and belowthe wrist-pins. The valve is of the balanced rocking type, and is placed on the top of thecylinders, the valve-case forming the cylinder-heads. The fly-wheel…
