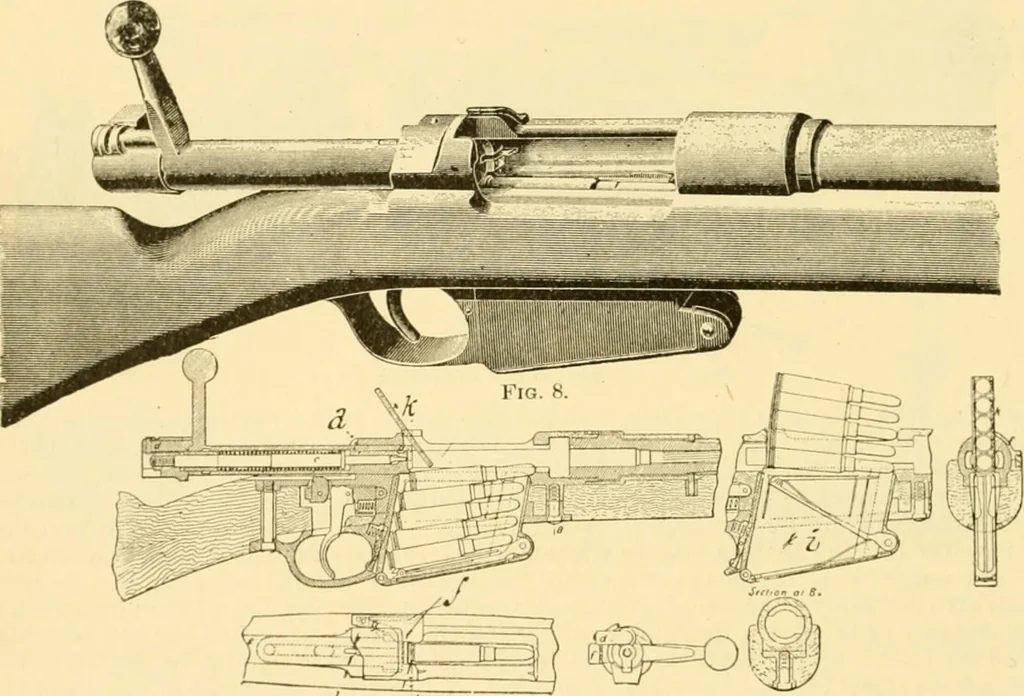

by the elastic pressure of the piece /.The first movement of the bolt throws out the clip, and the piece / springs back into place. In the Mauser magazine the cartridges are pushed in sidewise insteail of endwise, and yetthe spring does not force them out again as soon as the pressure is withdrawn.… … ^ a, Fipr. 9.-Details.Figs. 8, 9.—Mauser magazine ritle. spring apart to receive a charge. They are, however, sufiiciently strong nof to be opened bytiie elastic pressure which forces the cartridges upward. The base of the ton cartridgeprojects above the mouth of the magazine .sulTiciently to be…
