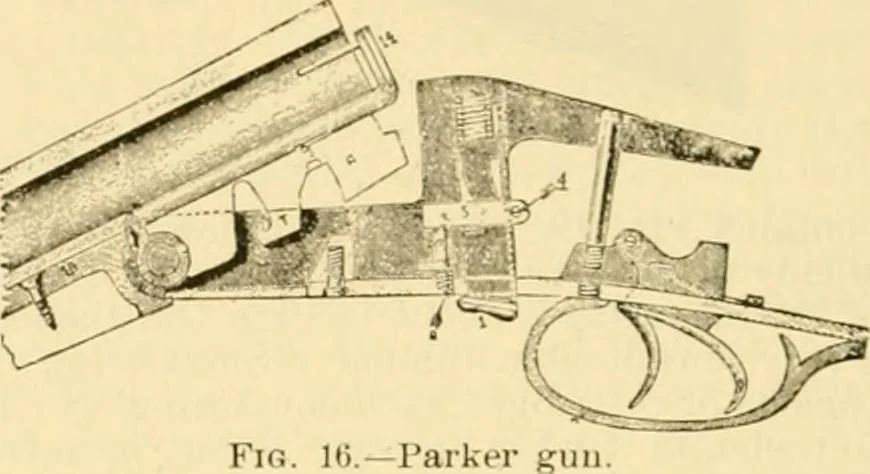

FiG. 15.—rarker guu. tise which is cut in the lug 0, and releases the barrels, ready for the insertion of the car-tridges. It will be observed that when the bolt 5 is back to the position, as showr in Fig. 16,the .same hole which is drilled in the under side of said bolt comes directly over the…
