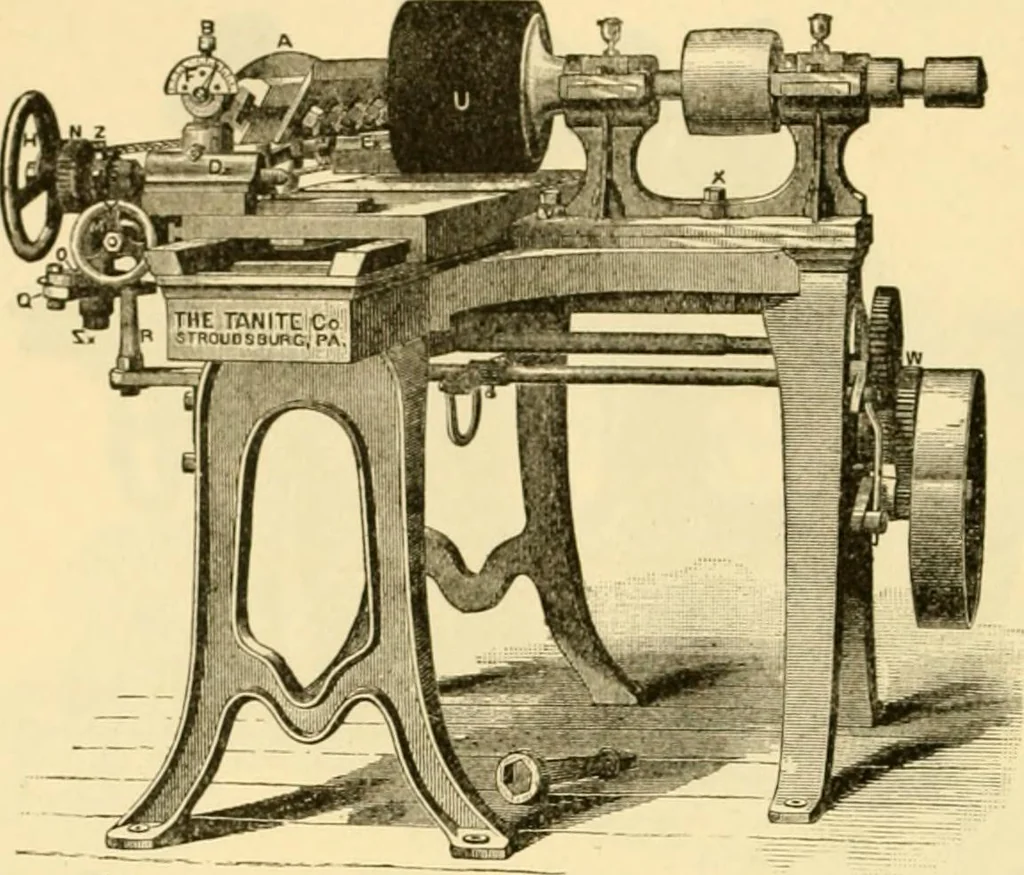

ating screw, and the arm G is depressed in front until the wheel is in proper posi-tion. The wheel is previously adjusted to the proper angle of the tooth by partially rotatingthe arm.in the block F, and securing it when the wheel is at suitable inclination. When theapparatus is to be used to gum a… … Fig. 9.—Knife-grinder. The Tanite Aufomaiic Planer Knife-Grinder is shown in Fig. 9. In this machine theknife is ground with a straight bevel with no change until the wheel is worn out, or it can bemodified to grind a concave bevel, or square edges.
