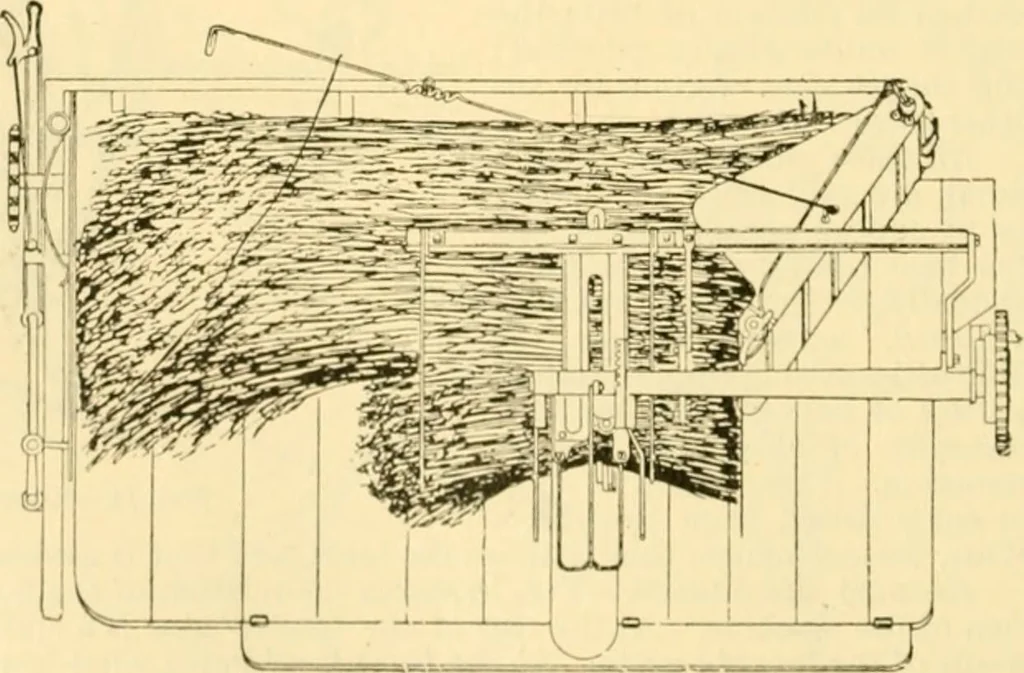

shownbelong to what is known asthe Appleby type of twine-binder, although similarpractical results in automat-ically tying sheaves withtwine are reached by somedifferences of mechanical de-tail in the Holmes binder,with equal succe.-^s. Utiliza-tion of the mechanical press-ure on a tripping arm, by… … HARVESTING-MACHINES, GRAIN. 423 justed for given tightness of band, position of band, and size of sheaf, the binder is self-regulating. The Holmes Binder.—The knotter (Fig. 20) of the Holmes binder is a hollow shell rotatedby its pinion and having a barbed volute hook centered on its lower end in a…
