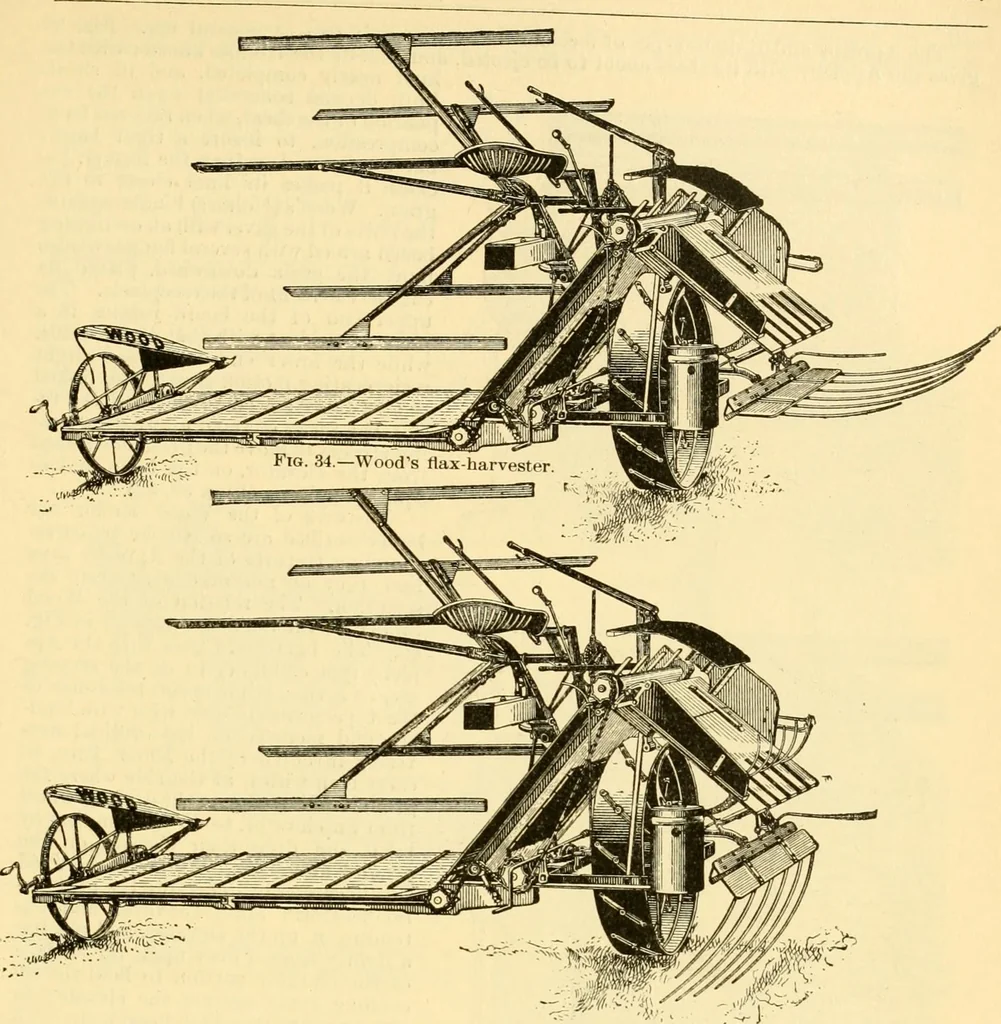

right of the 7>ackor-wheel. Figs. 34 and 35 show a manner of adapting the Wood machine toharvesting flux, wliich is usually left in bunches instead of sheaves. A slotted table with aseries of teeth movable in the slots is substituted for the liinder mechanism. The operator,by one movement on a… … Fig. 35.—Woods flax-harvester.
