Modern mechanism, exhibiting the latest progress in machines, motors, and the transmission of power, being a supplementary volume to Appletons' cyclopaedia of applied mechanics (1892)
Benjamin, Park, 1849-1922 · New York, D. Appleton · leaf 449

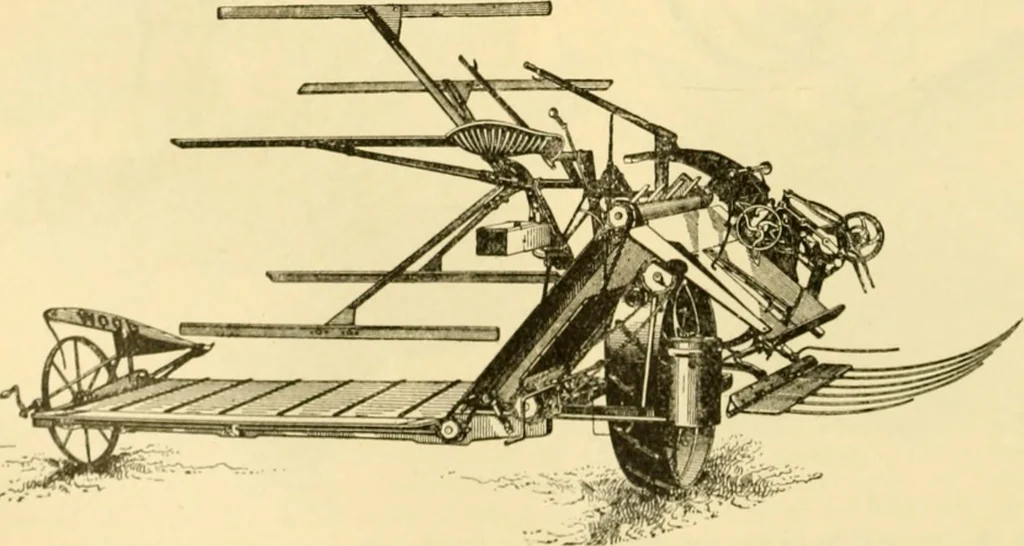

End board. he drives all three rollers positively by suitable gear, thus drawing the bottom of the clothtight and keeping the top surfaceslack. Lightness, reduced friction, and a decreased num-ber of rollers and quantity of cloth are the objects. … Kio. 40.—The Ilolincs binder with Woods harvester HARVESTING-MACHINES, GRAIN. 429 The triple-apron and single-apron arrangements are outlined in Figs 41 and 42. Theoperation of the single-apron construction is displayed in l^ig. 43; that of the triple-apron
Mechanical engineering
