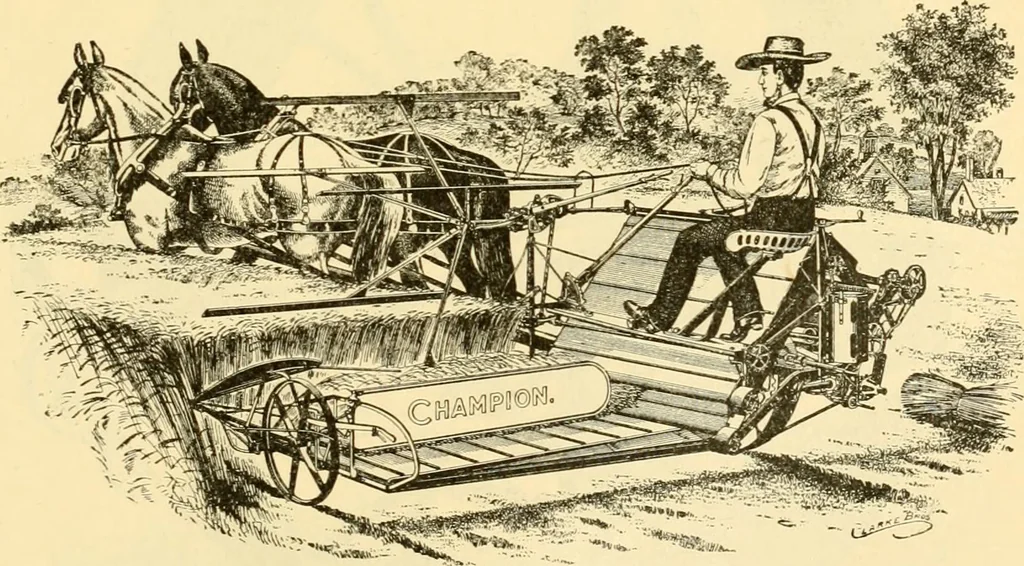

Fig. 43.—Single-apron operating. binding-harvesters has superseded wood, to resist the effects of weather and maintain integ-rity of alignment. So, also, chain-gearing is employed when it can be made available, in … Fig. 44.—Triple-apron operating. preference to cog-gearing, as it obviates the accurate lining of shafts, runs freely, and wearsonly in the chain-links, which are cheaply replaceable without delays, and its use lightens and cheapens construction. ,,-,.. 1.^1. m-i Driving-Gear—F\g. 46 is an improved…
